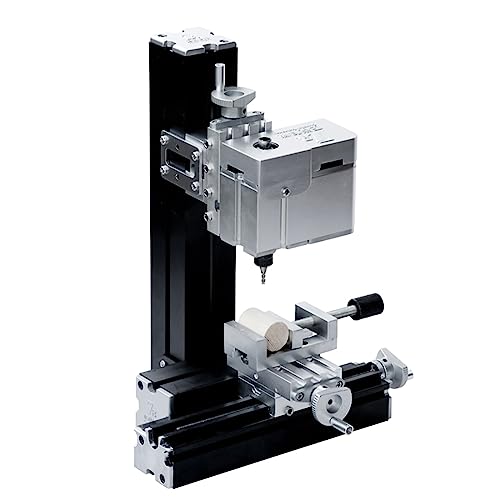

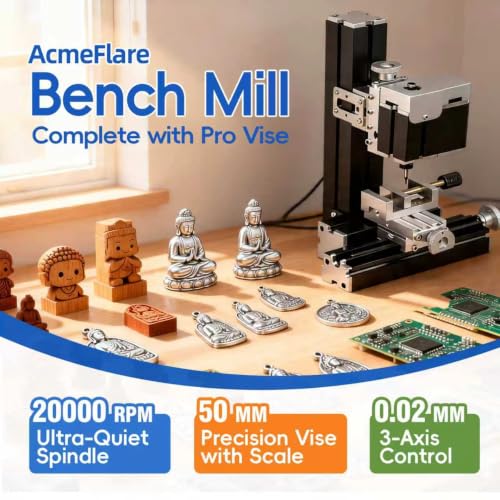

ZHRUI Electroplated Mini Metal Milling Machine 36W 20000rpm DIY Vertical Miniature Mill Lathe Machine Tools for Creative Maker Miniature Miller

ZHRUI Electroplated Mini Metal Milling Machine 36W 20000rpm DIY Vertical Miniature Mill Lathe Machine Tools for Creative Maker Miniature Miller

$275.54 USD
$275.54 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

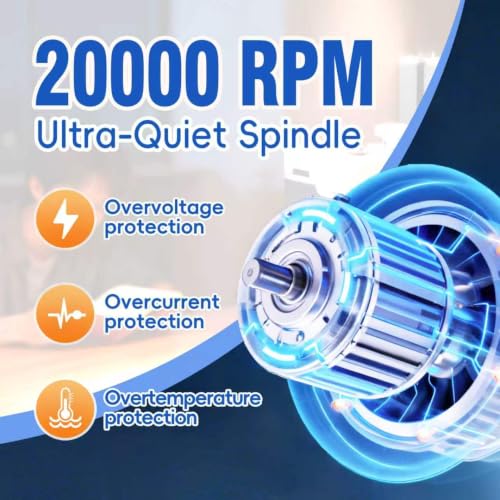

  • Hi-power motor is adopted with all drive axes,maximum speed up to 20,000 rpm. Input voltage/Current /Power: 12V/3A /36W. Input Voltage of Switch Power Supply: 110V- 240V

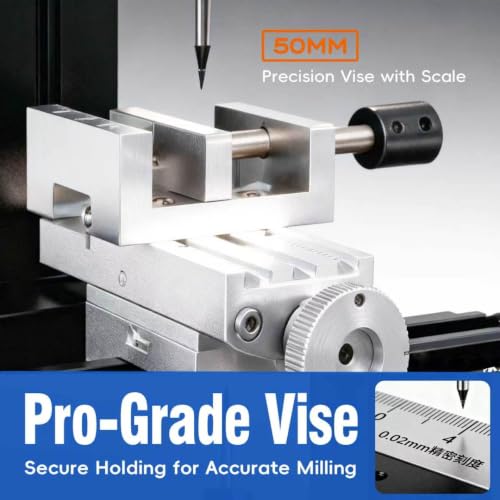

  • X-axis slider travels: 150mm. The chuck and collets is 1 to 6mm. Dimensions of metal plated vise:80mmx47.5mmx25mm, Maximum clamping size:50mm*50mm

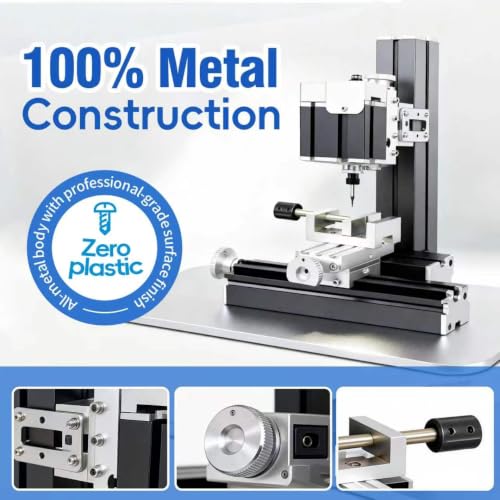

  • The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, slider, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.
  • Fan built-in motor is featured with Ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work. The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof.
  • Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly. 3C quality assured transformers have the function of over-current, over-voltage and over-heat protection. To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration.

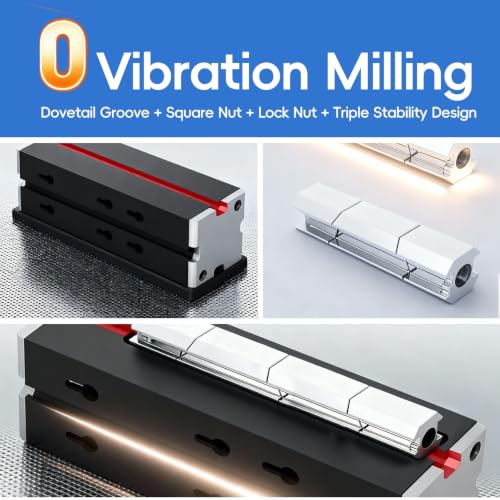

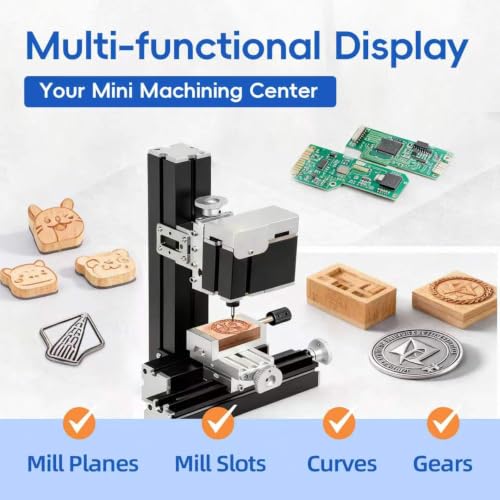

  • The connection piece adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy. Versatile application: The mini metal milling machine is not only powerful to process the regular materials, but also it is perfect choice for special items, such as various types of planes, grooves, gears etc.
  • The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).
  • By adding some loose-preventing nuts on the side of small& big slider, not only avoid the gap after excessive vibration, but also improve the processing accuracy.

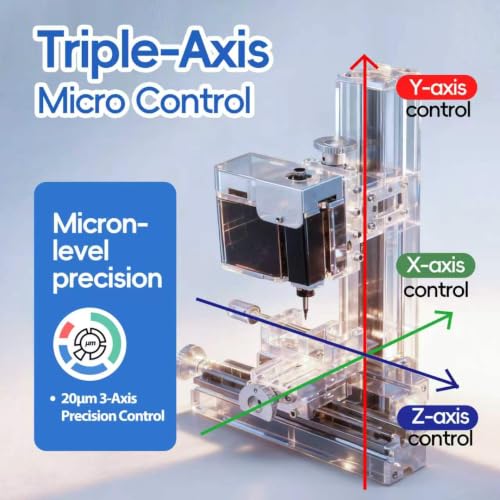

  • The electroplated hand wheels are designed with 3/4 semi-circular structure. With accuracy of 0.02 mm scale line, the precision of machine tools be increased obviously. (The scale lines are molded at one time, aren't sticky label)
  • Children-proof design & safe fillet processing technology, they are all to prevent metal parts from scratching the skin.

Low stock: 10 left
