YENUO Locking Heavy Duty Drawer Slides Full Extension 12–60 Inch 500 LB - size: 14 Inch, style: Load:500 lb (With lock) -W:76mm

YENUO Locking Heavy Duty Drawer Slides Full Extension 12–60 Inch 500 LB - size: 14 Inch, style: Load:500 lb (With lock) -W:76mm

$103.58 USD
$103.58 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

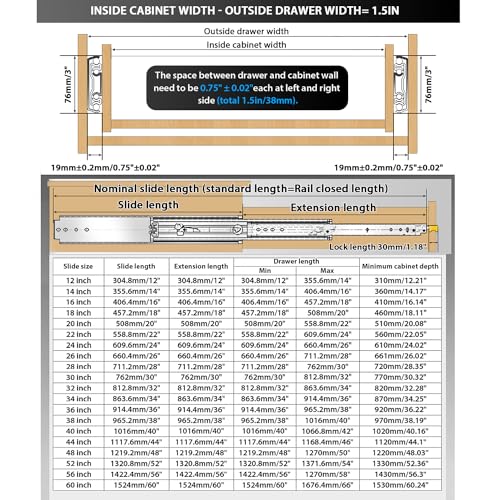

  • 🔧 Installation Note📏Suitable for drawers with an internal depth of ≥ 15"-17". The space between the drawer and cabinet wall needs to be 0.75in on each left and right side, totaling 1.5in (inside cabinet width － outside drawer width ＝ 1.5in).⚠️ Note: No mounting screws are included. You can purchase different M6 screws according to your specific installation scenario.🔒 For safety reasons, the slide is non-detachable . It is specifically designed for carrying industrial-grade heavy loads 📦.

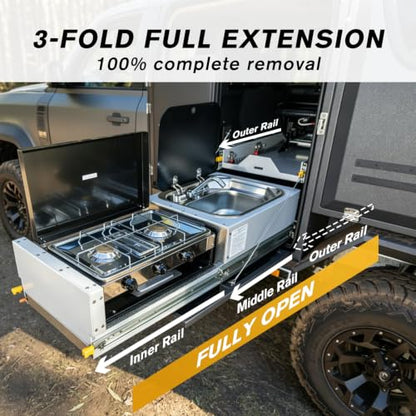

  • 📌3 Fold Full Extension📏Slides Width: 3" (76mm) — Slides closure length: 14" (excluding lock length) — Fully Extended Length: 28" (712mm) — 🔒 Yellow Lock Length: 1.18".✨The "3-fold full extension" design delivers complete slide extension, providing unobstructed access to the entire drawer’s storage space. It greatly enhances usability for heavy duty scenarios with smooth, reliable operation .🌐

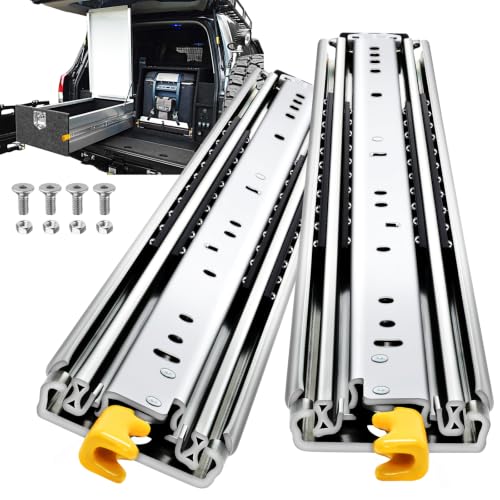

  • 🔒 MAXIMUM LOAD CAPACITY: 500 lb 💪 Heavy Duty Drawer Slides with Lock — crafted from 2.5mm-thick Q235 cold-rolled steel 🛡️, these slides boast exceptional density and superior strength, delivering a load-bearing capacity 5x greater than ordinary alternatives while maintaining reliable stability and safety even under full 500 lb loads 📦, having successfully passed 800,000 cycles of full-load opening and closing tests 🚪 without any damage or wear.
  • 🔒 With hold-still lock — crafted from premium Q235 cold-rolled steel 🔩, these slides blend exceptional strength with reliable locking performance. Featuring a bright yellow handle 🟡 for easy locking and unlocking, they automatically hold still (lock in place) when fully extended or closed, preventing accidental sliding and keeping your drawer stable and safe 🛡️. Simply press the lock handles on both sides of the pair gently to unlock, allowing smooth free sliding.
  • 30-Year Service Life⚡YENUO drawer slides feature an electroplated blue zinc finish 🛡️, isolating the surface from air and water to deliver exceptional oxidation & corrosion resistance for long-term reliability. Combined with high-quality Q235 steel, they ensure a minimum 30-year lifespan.Our motto: "Quality slides, quality life" — beyond uncompromising quality, we prioritize reliable after-sales support. Feel free to contact us for any issues.

Overview

  • Color: White
  • Material: Q235 Steel
  • Brand: YENUO
  • Product Dimensions: 15"L x 3"W x 0.75"Th
  • Finish Type: Steel
