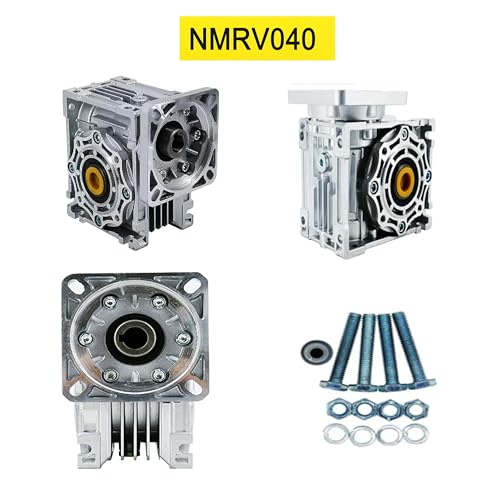

NMRV040 Worm Gear Gearbox, Input 14mm, Output 18mm, 30:1 - size: 30:1

NMRV040 Worm Gear Gearbox, Input 14mm, Output 18mm, 30:1 - size: 30:1

$84.66 USD
$84.66 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

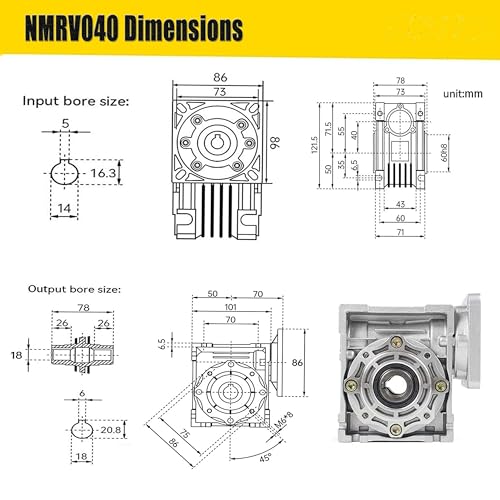

  • 【Specifications】Model: NMRV040 (small), input hole size: 14 mm 0.55" ,output hole size: 18mm 0.7",input flange model: NEMA34(86x86), Typical backlash: 2‑4°，Material : aluminium alloy , application: Servo Motor/step motor,Color: slive

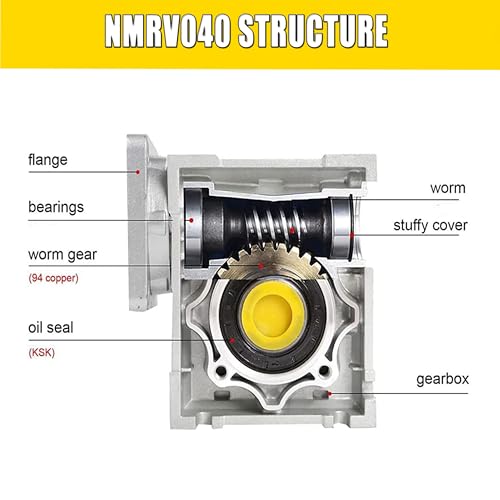

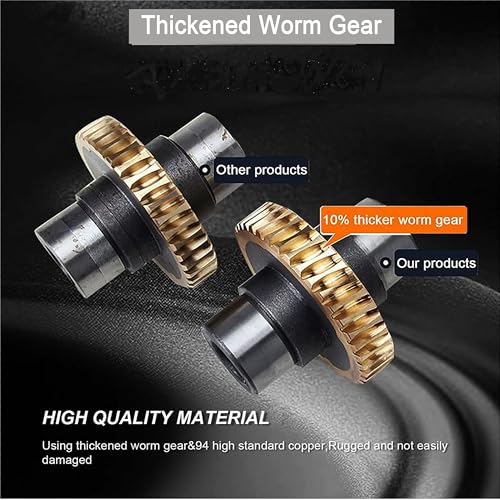

  • 【Material 】 1. The worm gear is made of ductile iron QT-400, which is well made. 2. The worm gear rod is made of 20CR round steel (carbonized and high-temperature treated, stable transmission, high efficiency). 3. The gearbox is made of high-quality ADC12 aluminum die-casting box, which has strong sealing, small volume, light weight, easy installation, and is not easy to corrode

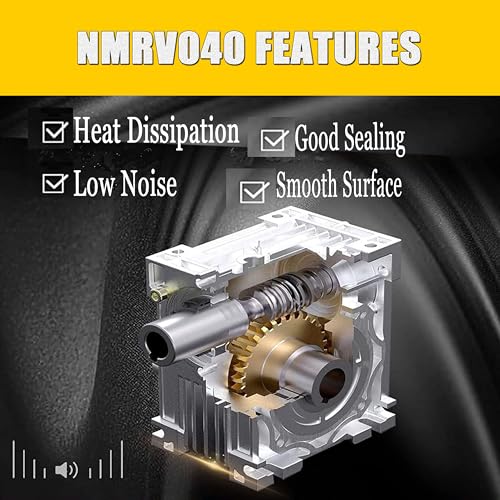

  • 【Advantages 】The structure with a protection level of IP55 has good insulation effect against dust and moisture. It also has the characteristics of high torque, low noise, stable operation, strong adaptability, high overload, and strong impact resistance
  • 【Self‑locking property】1） Ratios 5‑40: Non‑self‑locking, reversible, For general transmission, conveying, high‑precision positioning，Load holding is prohibited；2）Ratios 50‑100: Static self‑locking only. This static self‑lock cannot be used as a safety brake. Suitable for lifting and load‑holding scenarios.
  • 【 Application 】 With delay and torque increasing functions, it is widely used in mechanical equipment, light industry, food industry, chemical construction, textile industry, building materials, logistics, environmental protection and other fields
  • 【Precautions 】 1.) Do not hit the casing of the gravity hammer reducer to avoid damage. 2. Regularly check whether the installation, sealing, and transmission shaft functions are functioning properly. 3.) The temperature of the lubricating oil should be below 85 ° C. When the oil temperature changes abnormally and produces abnormal noise, the inspection must be stopped immediately. 4.) The replacement of new spare parts must be officially used after operation and load testing

Overview

  • Brand: XUNKUANER
  • Product Dimensions: 86"W x 86"H
  • Number of Items: 1
  • Manufacturer: XUNKUANER
  • Item Highlight: RV40 NMRV-040, Metal Gearheads, For Nema34 Stepper Motor/Servo Motor,Input 14 mm 0.55",Output 18mm 0.7" RV40 NMRV-040, Metal Gearheads, For Nema34 Stepper Motor/Servo Motor,Input 14 mm 0.55",Output 18mm 0.7"
