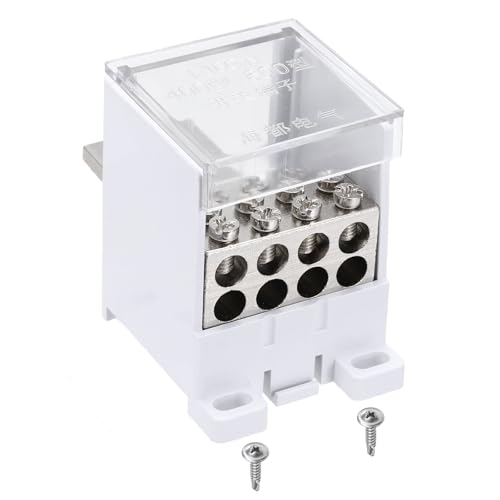

MECCANIXITY 1 in 8 Out Rail Terminal Block 690V 400A Connector for 12-4AWG - size: 44.2mm for 12-4AWG, style: 1 in 8 Out, 690V 400A

MECCANIXITY 1 in 8 Out Rail Terminal Block 690V 400A Connector for 12-4AWG - size: 44.2mm for 12-4AWG, style: 1 in 8 Out, 690V 400A

$26.54 USD
$26.54 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

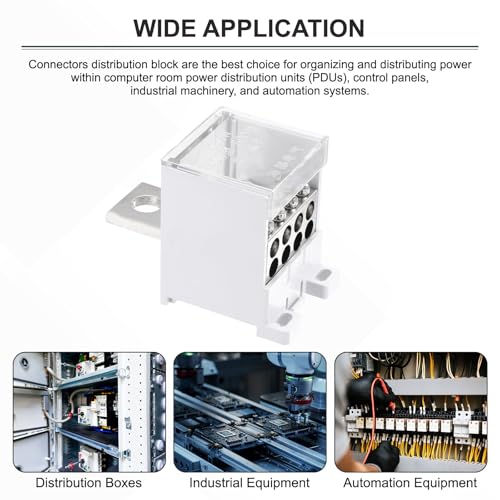

  • This DIN rail terminal block distribution box is designed for organizing and protecting electrical connections in industrial and residential settings. The distribution box features a 690V voltage rating and 63A current capacity, suitable for power distribution in various applications.

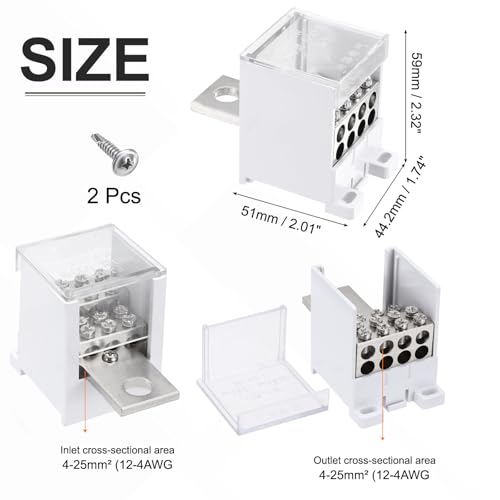

  • Type: 1 Inlet 8 Outlet DIN Rail Terminal Block; Material: Brass tin plating; Color:White; Rated Voltage And Current: 690V; 400A; Inlet cross-sectional area: 4-25mm² (12-4AWG); Outlet cross-sectional area: 4-25mm² (12-4AWG); Overall Size: 2.01 x 1.74 x 2.32 inches/51 x 44.2 x 59mm (L x W x H); Package Includes: 1 pcs strip blocks + 2 threads

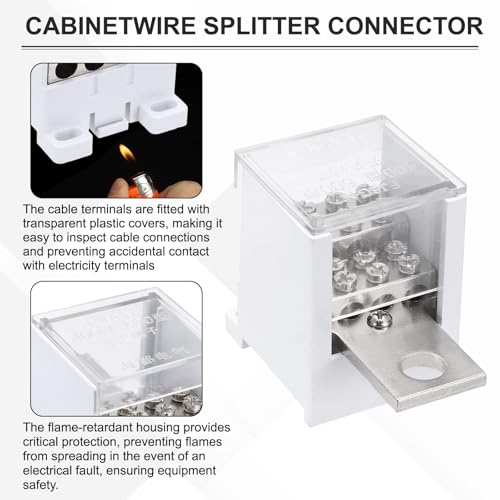

  • This distribution box offers a compact design that saves space in electrical enclosures while maintaining a 63A current capacity. The flame-retardant shell material provides additional safety in demanding environments. Because of the fine material, it has a stable performance and does not leak electricity or heat up.

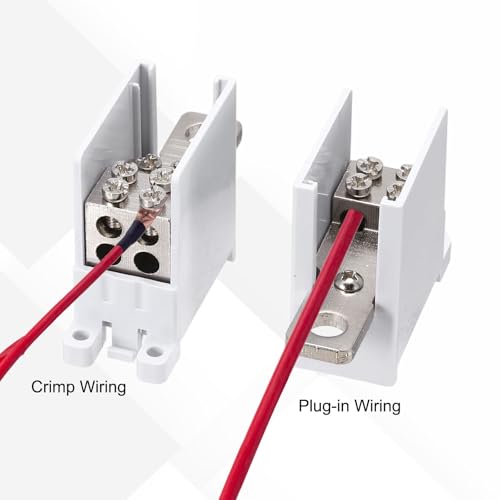

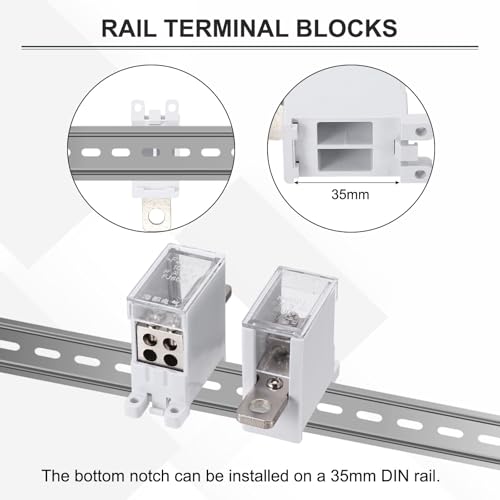

  • Mount the distribution box on a standard 35mm rail using the provided mounting accessories. Connect the incoming power wire to the input terminal, then distribute power to multiple circuits through the output terminals. Ensure all connections are secure before turning on the system.
  • Verify the voltage and current ratings match your application requirements before installation. Always de-energise circuits before working on electrical connections. When installing, please pay attention to safety and be cautious of electric shock. Regular inspection of connections is recommended as part of normal maintenance procedures.

Overview

  • Item Pitch: 2.01 inches
  • Connector Type: Clamp
  • Number Of Contacts: 8
  • Mounting Type: DIN Rail Mount
  • Brand: MECCANIXITY
  • Product Dimensions: 1.74"W x 2.32"H
  • Centerline Length: 5.1 centimeters
  • Specification Met: CE
  • Number of Items: 1
  • Manufacturer: MECCANIXITY
