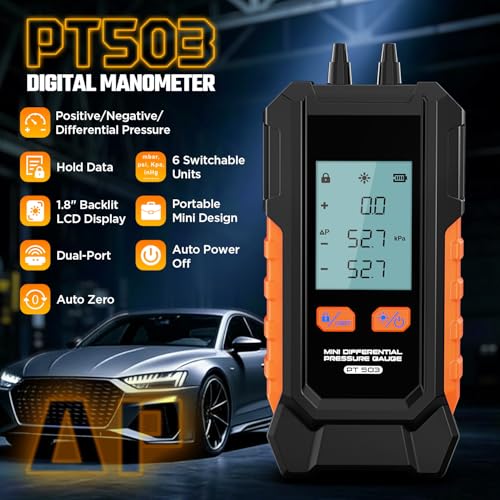

Manometer, Dual-Port Gas Pressure Tester, -101 to 200 kPa Range

About this item

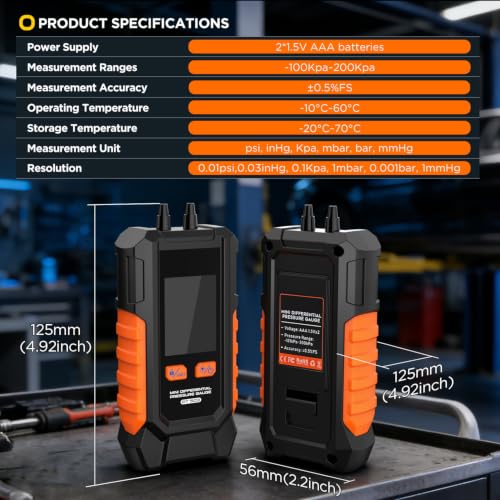

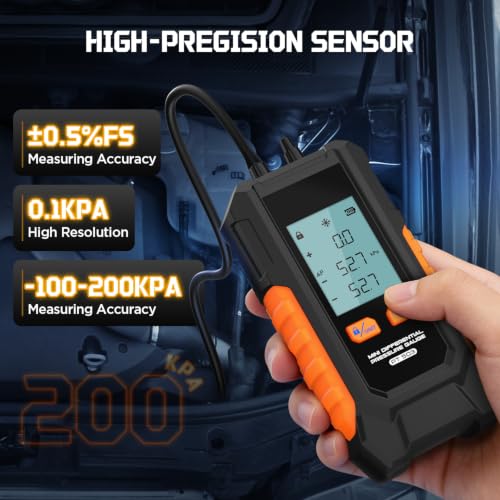

• 【High-Precision Gas Pressure Testing with Rapid Response】: Equipped with a ±0.5% full-scale accuracy sensor and 0.1kPa resolution, this tester captures even the slightest pressure fluctuations instantly. The broad measurement range (-101kPa to 200kPa) ensures reliable performance across demanding diagnostic tasks.5-minute automatic shutdown after inactivity.

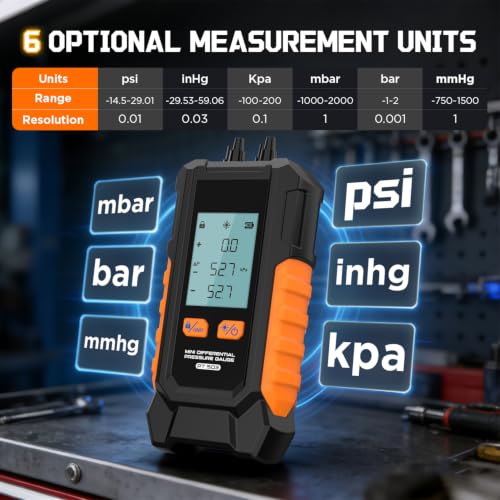

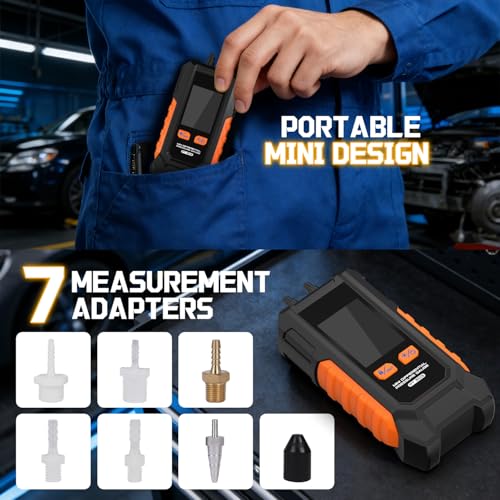

• 【6 Pressure Units & 7 Adapters】:This digital manometer supports 6 widely‑used pressure units covering both metric and imperial standards: psi, inHg, kPa, mbar, bar, mmHg. Readings display directly without manual conversion, fitting technicians across different industries and regions. It comes with 7 adapters for multiple pipe outer diameters: OD 6 mm, OD 8 mm, OD 9 mm, OD 16 mm, OD 20 mm, OD 4‑12 mm, OD 8‑20 mm. The kit also includes 4 pieces of 16‑inch hoses plus one 40‑inch extra‑long hose (inner diameter: 3 mm).
• 【Wide Application】: This Digital Manometer applies to HVAC and refrigeration‑ventilation system measurements, gas pressure system troubleshooting, and natural gas pipeline pressure checks. It supports laboratory testing, as well as maintenance and installation for blowers, boilers and other gas‑powered appliances. It also works for industrial equipment pressure detection, plus pressure and vacuum testing on automotive components including intake manifolds, exhaust pipes, brake boosters, crankcases and air‑conditioning systems.

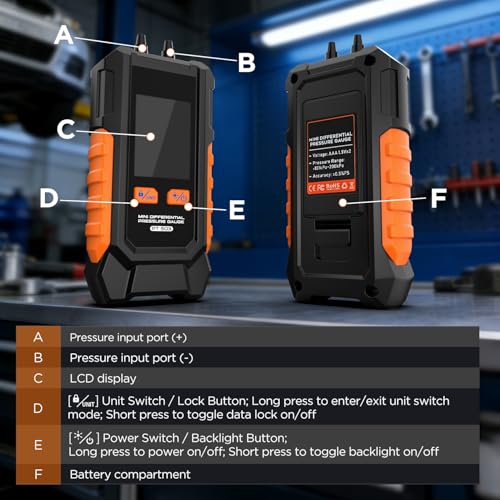

• 【Single/Dual Channel Test】:This dual‑port gas pressure manometer is built to measure static pressure and differential pressure via two ports within air and gas systems. Single‑channel mode quickly reads the real‑time detected pressure value (relative to the ambient atmospheric pressure), while dual‑channel mode simultaneously captures the pressure difference between the two ports..
• 【Data Hold & Data Zeroing & Auto Pressure Calibration】:One‑click data hold function locks readings to avoid value shifts caused by accidental touches or environmental interference. This HVAC digital gas manometer automatically resets readings and completes atmospheric pressure calibration upon power‑on for more consistent pressure measurement results.

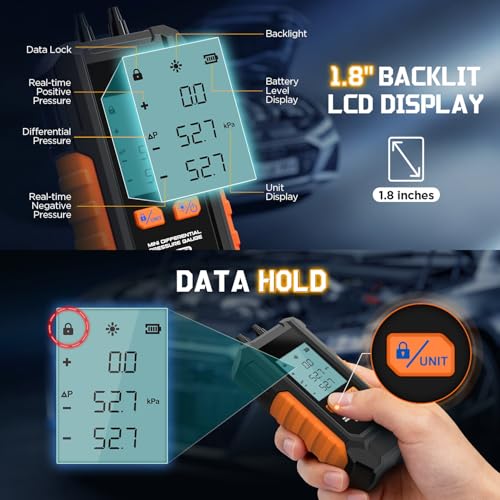

• 【Backlit LCD Display & Portable Design】: This dual‑port gas manometer is equipped with a 1.8‑inch HD backlit LCD screen for clear readings under low‑light working conditions. The handheld grip adopts non‑slip silicone material for stable handling and convenient one‑hand operation. Compact and lightweight at only 120 g, this HVAC digital manometer fits into pockets for easy field transport.
• 【3-Year Warranty & 24/7 Support】:Encounter any issues? Lost or damaged adapter? Unit not working as expected? Just contact EVSTUL. Our technical team delivers fast, effective solutions. Backed by 3-year after-sales service and 24/7 customer support — we've got you covered.

Overview

• Brand: EVSTUL
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Item dimensions L x W x H: 8 x 6 x 2 inches
• Item Weight: 0.22 kg
• Item Highlight: Digital Manometer Differential Pressure Gauge HVAC with 6 Switchable Units, Large Backlit LCD, Data Hold Function, 7 Adapters Digital Manometer Differential Pressure Gauge HVAC with 6 Switchable Units, Large Backlit LCD, Data Hold Function, 7 Adapters
