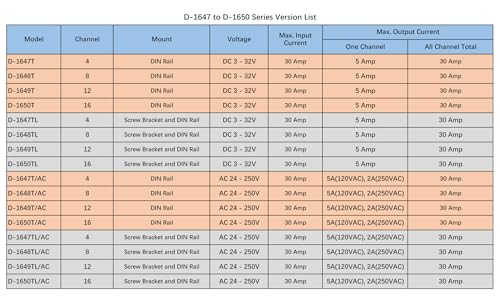

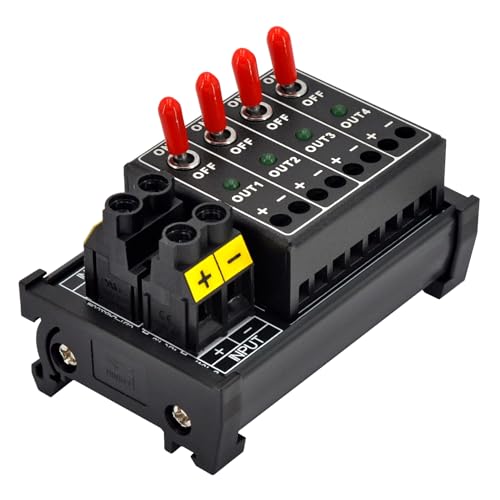

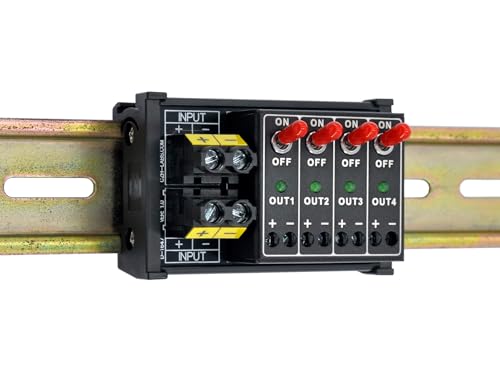

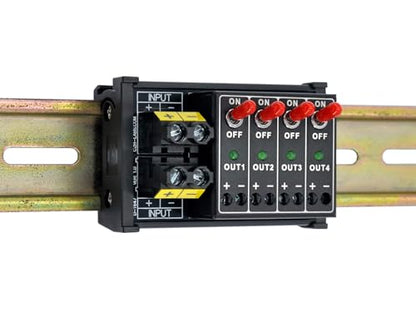

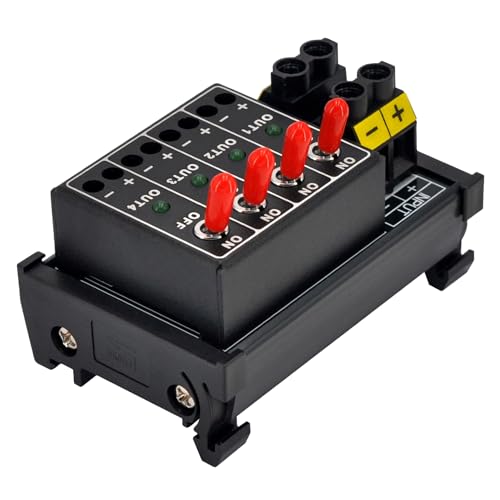

DC 4 Channel Toggle Switch Power Distribution Module, DIN Rail Mount

DC 4 Channel Toggle Switch Power Distribution Module, DIN Rail Mount

$49.80 USD
$49.80 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • Working voltage DC 3 to 32V. Maximum input current 30 Amps. 4 Channels output, each channel maximum output current 5 Amps.

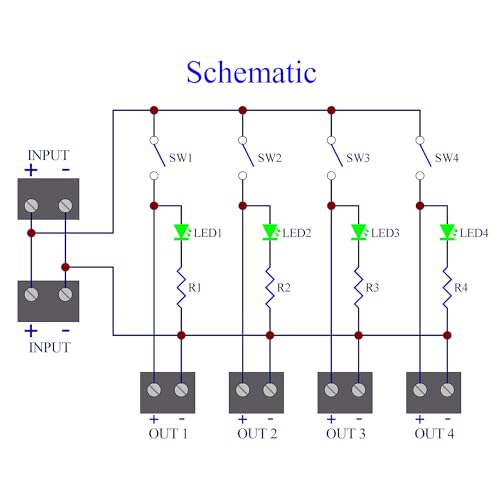

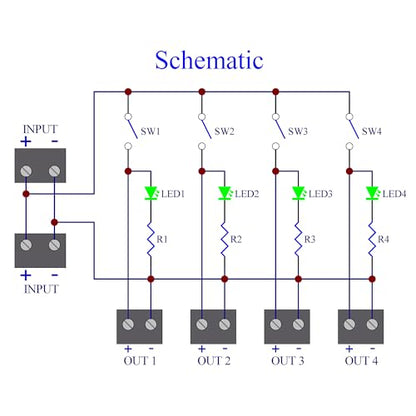

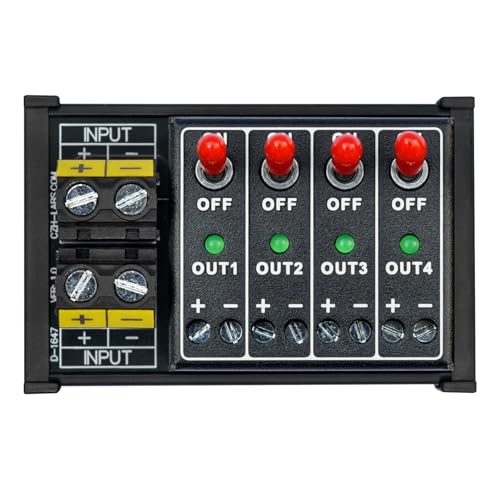

  • Toggle switch ON/OFF power output for each channel. With switch power ON LED indication function.
  • Input terminals: pitch 7.62mm/0.3", rated current 30 Amps for per position, wire size 26-10AWG / 4.0mm square, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
  • Output terminals: pitch 5.0mm/0.197", rated current 5 Amps for per channel, wire size 26-12AWG / 2.5mm square, stripping length 7mm, Metric M3 slotted screw.

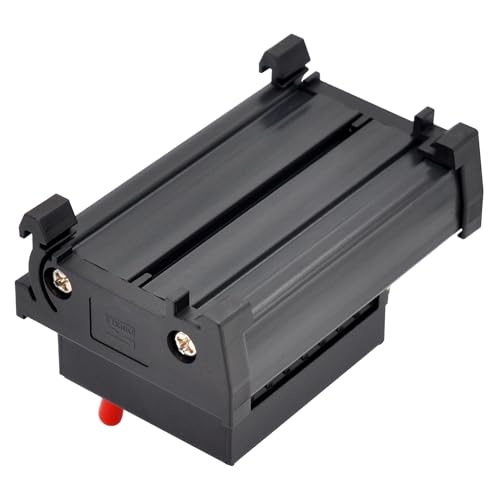

  • High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. Aluminum top cover.
  • UL CE certified DIN rail mount carrier. UL 94-V0 certified FR-4 fiberglass PCB. UL CE CQC certified terminal blocks.
  • Operating Temperature: -20 to 60 degrees Celsius.

Overview

  • Current Rating: 30 A
  • Item Pitch: 0.3 inches
  • Connector Type: Terminal Block
  • Number Of Contacts: 4
  • Mounting Type: DIN Rail Mount
  • Material: Nylon
  • Brand: OONO
  • Number Of Poles: 4

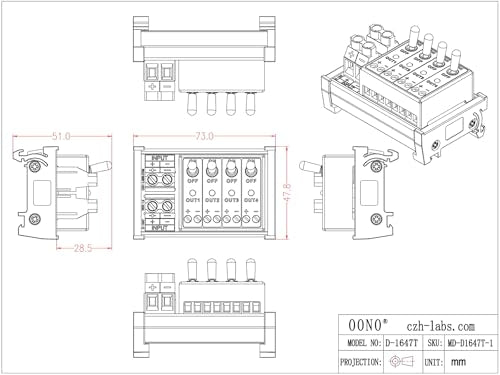

  • Product Dimensions: 2.87"W x 2"H
  • Specification Met: CE, CQC, UL
