DaierTek Power Distribution Block with Cover Mini 5 x 1/4" Studs Bus Bar Terminal Block Max 150A 48V DC 300V AC Positive & Negative for Automotive Car Marine - size: 5M6+0S

DaierTek Power Distribution Block with Cover Mini 5 x 1/4" Studs Bus Bar Terminal Block Max 150A 48V DC 300V AC Positive & Negative for Automotive Car Marine - size: 5M6+0S

$33.18 USD
$33.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • Durable & Sturdy - The base of the bus bar is made of nylon, which is heat resistant and durable. Also the stainless steel stud terminals are resistant to corrosion, and the nickel plated copper plate also makes the marine bus bar have high conductivity and superior corrosion resistant performance, effectively enhances the lifecycle of the bus bar.

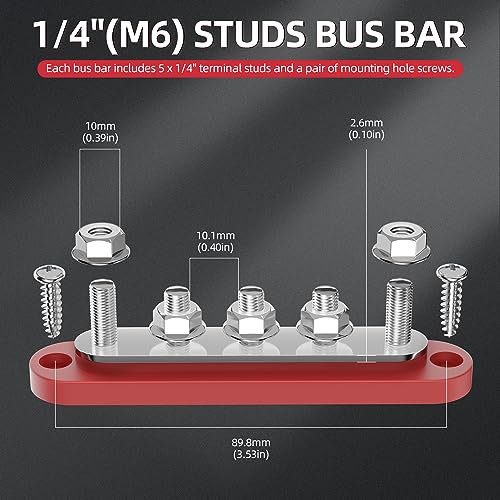

  • 1/4" Stud Terminal - The battery bus bar terminal block with 5 x 1/4" (M6) studs terminal, which makes the 12V busbar able to accept a wide range size terminal connectors and wires install. And the washer design nuts also makes the contact of nut, wire lug and the terminal block closer, which will be much easier to tighten and safer to use.

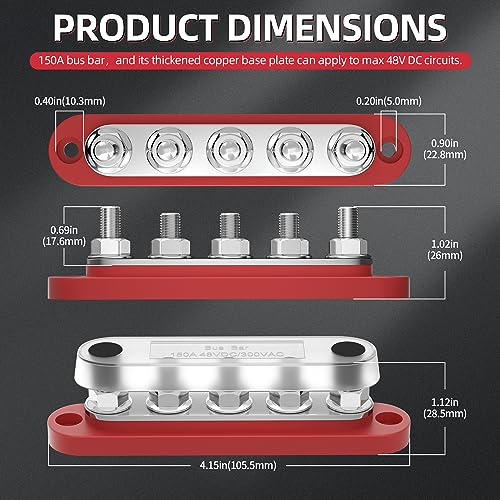

  • Rating & Dimension - Maximum current: 150A DC, 130A AC. Maximum voltage: 48V DC, 300V AC. The overall dimension of this small bus bar is 4.2in x 0.9in x 1.1in.

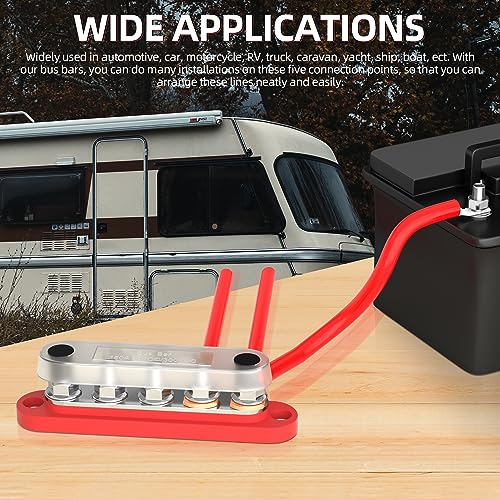

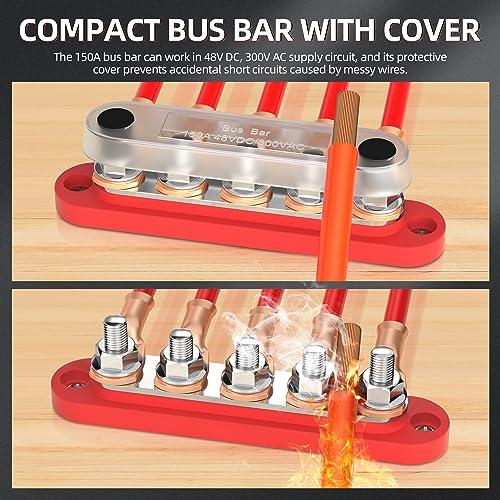

  • Wide Applied Range - The 12V power distribution block with cover helps to protect more exposed areas and prevent accidental short circuit, of course the busbar helps to wire neatly and prevent electrical short circuit caused by messing wiring harness. The battery bus bar can widely used in automotive, cars, trucks, RVs, motorhomes, motorcycles, marine, boats, ships and so on.

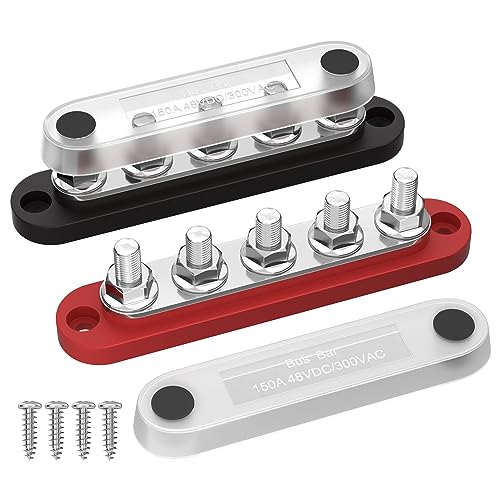

  • Package Included - A pair of 12V battery bus bars with covers: A red positive bus bar and a black ground bus bar, two sets of mounting screws and each of bus bar with 5 terminal posts.

Overview

  • Current Rating: 150 A
  • Item Pitch: 0.25 inches
  • Connector Type: Screw
  • Number Of Contacts: 5
  • Mounting Type: Panel Mount
  • Material: Nylon
  • Color: red or black
  • Brand: DAIERTEK
  • Voltage: 300 volts
  • Number Of Poles: 5
