CheeMuii 72 PCS Brass DOT Air Line Fittings with 1/4" & 3/8" DOT Air Hoses - size: 2ROLL-76PCS

CheeMuii 72 PCS Brass DOT Air Line Fittings with 1/4" & 3/8" DOT Air Hoses - size: 2ROLL-76PCS

$124.48 USD
$124.48 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

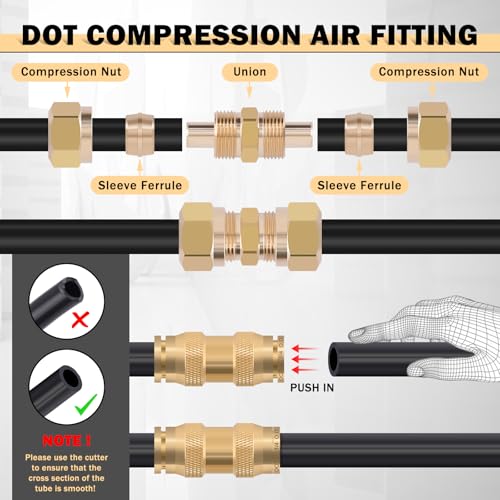

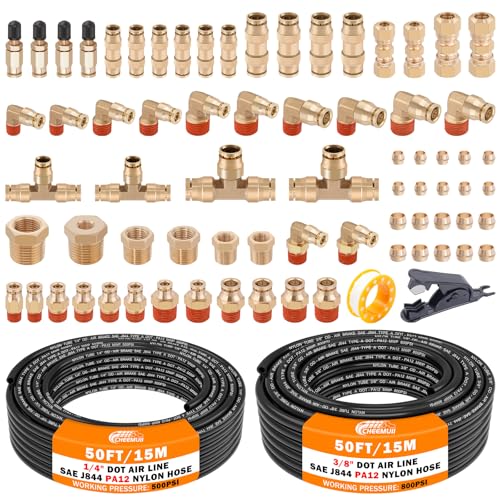

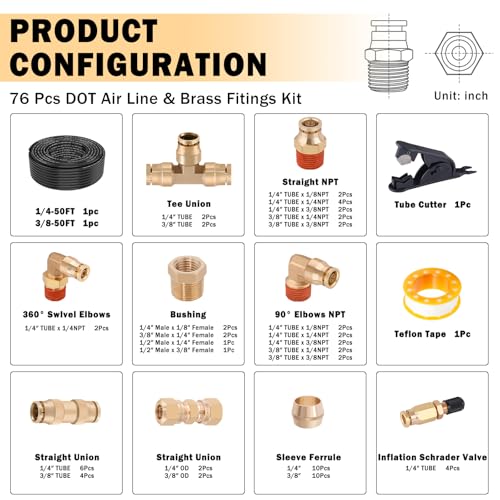

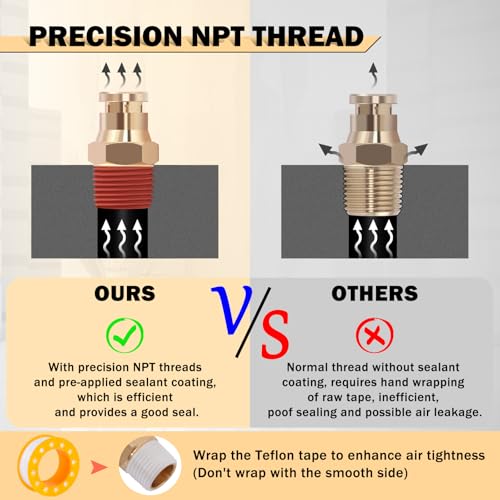

  • 76 PCS PACKAGE INCLUDE: 50 ft 1/4" dot air line hose, 50 ft 3/8" dot air line hose, 4 pcs brass tube tee fittings, 14 pcs brass straight union, 12 pcs brass straight push connectors NPT thread, 10 pcs 90°elbows NPT thread, 2 pcs 360° swivel elbows NPT thread, 4 pcs brass 1/4" inflation Schrader valve, 6 pcs bushing, 20 pcs sleeve ferrule, 1 pc cutter,1 pc Teflon tape

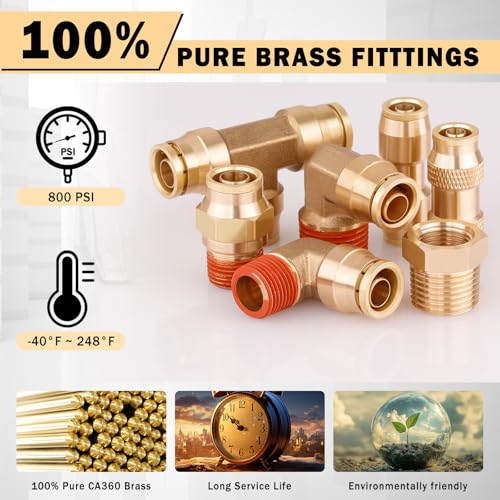

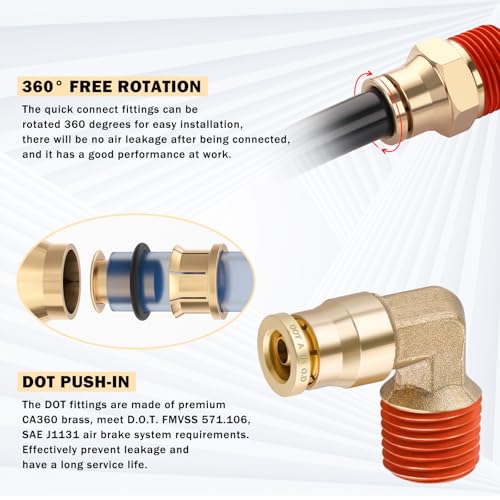

  • PREMIUM DOT FITTINGS: CheeMuii DOT air hose fittings are made of high-quality CA360 brass, meet D.O.T. FMVSS 571.106 approved, SAE J1131 air brake system requirements, with corrosion resistance, high-temperature ductility, low permeability and long service life

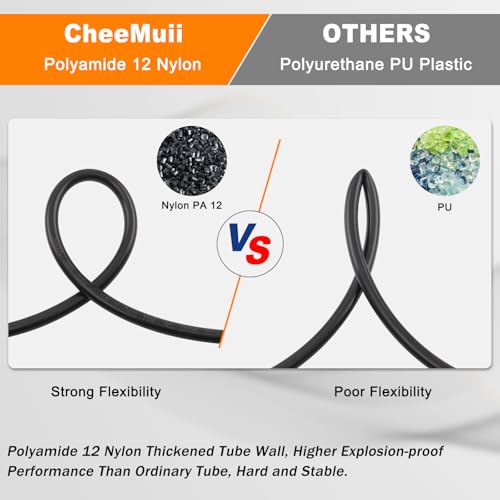

  • PREMIUM PA12 DOT AIR HOSE: CheeMuii DOT air lines are made of high-quality Polyamide 12 nylon, meet D.O.T. FMVSS 571.106 approved, SAE J844 air brake system requirements, with corrosion resistance, high-temperature ductility, high pressure resistance and long service life
  • HIGH-STRENGTH AIR HOSE: CheeMuii reinforced pneumatic tubing has high impact and wear resistance, can withstand higher working pressure, and has a longer service life. At the same time, it has a certain degree of flexibility and can be easily bent to a certain extent without affecting normal use
  • AIR SUSPENSION VALVE: CheeMuii 1/4" inflation Schrader valves are made of brass, which is durable and corrosion-resistant. Thread length: 3/4". Provide a manual inflation point to air spring suspension bags. Each expansion valve is equipped with a protective cap to prevent dirt and mud

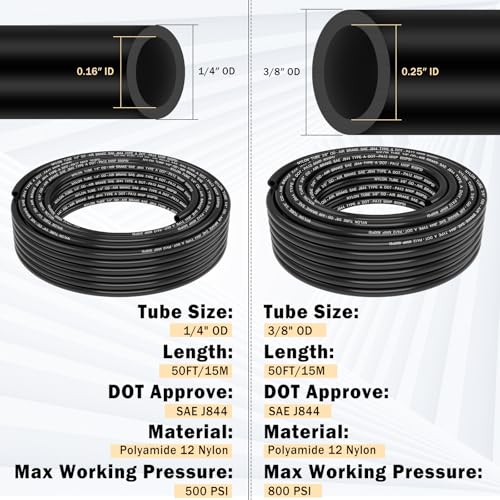

  • 50 FT 1/4" AIR TUBING WORKING INTENSITY: The 1/4" DOT air lines can be operated in pressures from vacuum to 500 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C). Note: see the tubing manufacturer's recommendations for pressure and temperature mutations
  • 50 FT 3/8" AIR TUBING WORKING INTENSITY: The 3/8" DOT air lines can be operated in pressures from vacuum to 800 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C). Note: see the tubing manufacturer's recommendations for pressure and temperature mutations
  • WIDE APPLICATION: The air hose & DOT fittings kit can be used for air suspension systems, perfect for semi truck/trailer/RV repair air line leak, also ideal for industrial workshops, towing machine hose connection, etc

Overview

  • Brand: CheeMuii
  • Material: Brass, Polyamide Imide
  • Color: Gold
  • Item Weight: 2.29 kg
  • Maximum Pressure: 800 psi
  • Outside Diameter: 0.25 inches
  • Item Length: 100 feet
  • Manufacturer: CheeMuii
  • Number of Packs: 1
  • Set Name: Brass DOT Air Line Fitting Set (76 Piece)
