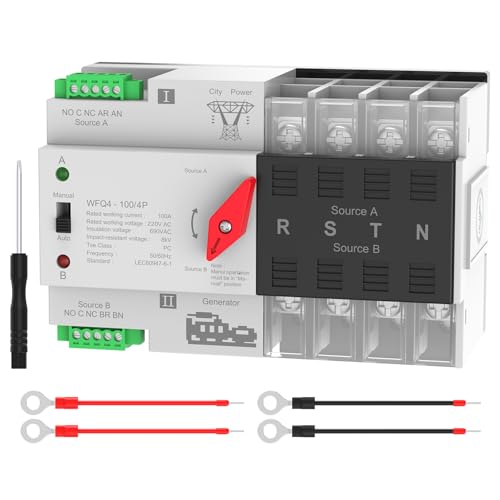

Automatic Transfer Switch 100A AC 220V, Dual Power ATS 4P Automatic/Manual Transfer Switch din Rail mounting for Home Generator, RV，Public/Backup Power Supply - size: Automatic Transfer Switch 4P 220V

Automatic Transfer Switch 100A AC 220V, Dual Power ATS 4P Automatic/Manual Transfer Switch din Rail mounting for Home Generator, RV，Public/Backup Power Supply - size: Automatic Transfer Switch 4P 220V

$63.06 USD
$63.06 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

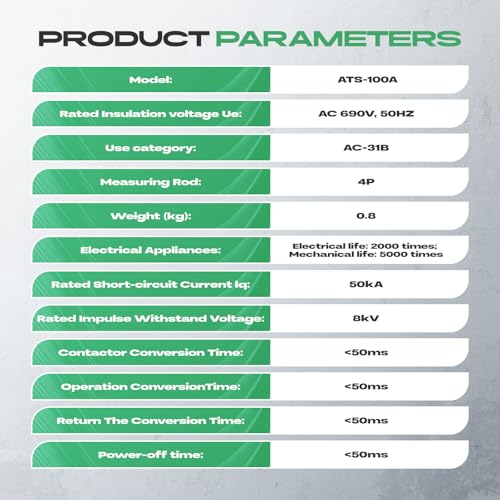

  • 【Product Specifications】：This automatic transfer switch is rated for 100A current, 220V voltage, and 50/60Hz frequency, with an insulation voltage rating of 690V. Featuring a 4-pole design and PC fire rating, it supports automatic or manual mode switching. it employs a standard 35mm DIN rail mounting structure that is compact and sturdy, ensuring easy installation and maintenance.
  • 【 Comprehensive Protection】：Built-in multiple electrical protections: short-circuit protection, overload protection, phase loss protection, under-voltage/over-voltage protection, etc. ensuring safe operation even under abnormal voltage or current conditions. Automatically detects main power status; when main power fails, the backup power source switches on within 0.05 seconds to guarantee continuous and stable power supply.

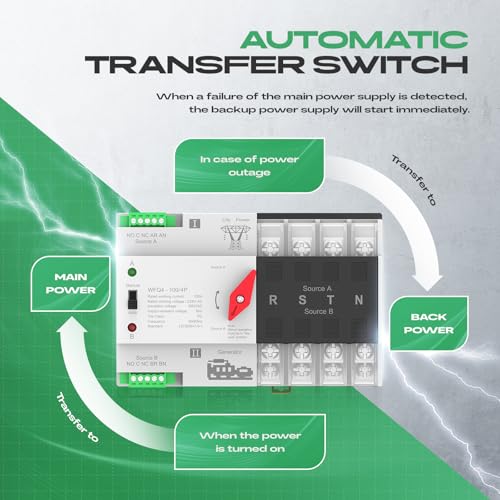

  • 【 Dual-mode】：Supports both automatic and manual operating modes: Automatic Mode: Automatically switches back to the main power source upon restoration, ensuring uninterrupted power supply; Manual Mode: Allows free switching between power sources via the panel switch. LED indicators display the current status, offering simple and intuitive operation for convenient maintenance and testing.

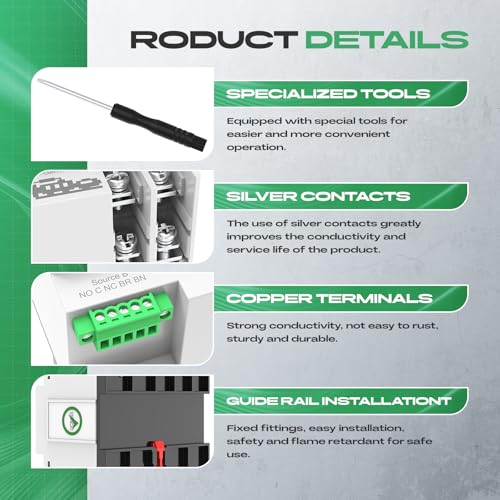

  • 【 High-quality materials】：Features a high-strength flame-retardant PC material housing, offering excellent insulation, high-temperature resistance, and anti-aging properties. The silver alloy contact design significantly enhances conductivity and service life, effectively preventing arc interference to ensure long-term stable operation.
  • 【 Wide Application】：Suitable for homes, factories, laboratories, hospitals, and other locations requiring continuous power supply. Whether the primary or backup power source malfunctions, it automatically detects and rapidly switches, ensuring the continuity, reliability, and safety of the power system.

Overview

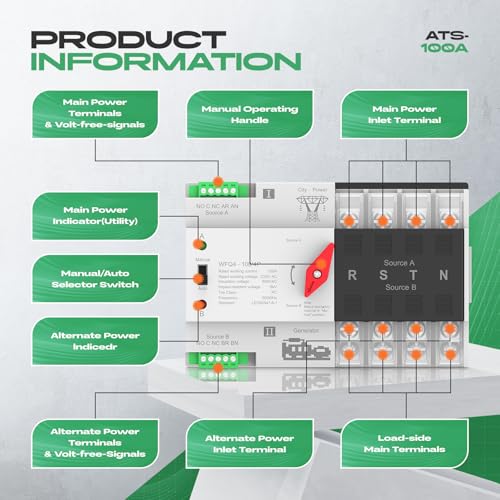

  • Operation Mode: ON-AUTO-MANUAL
  • Current Rating: 100 A
  • Operating Voltage: 220 volts
  • Contact Type: Normally Open
  • Connector Type: Plug In
  • Brand: Lovnewmax
  • Switch Type: Toggle
  • Terminal: Screw
  • Material: Plastic

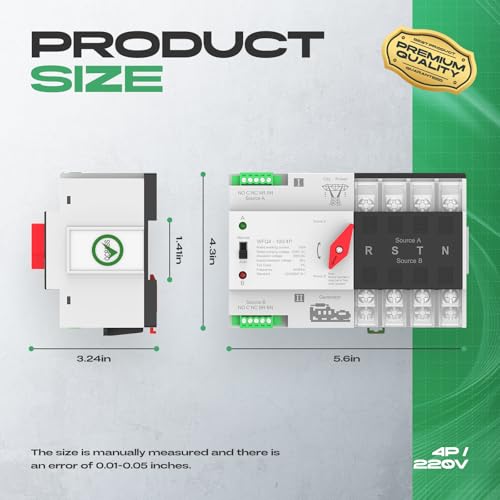

  • Item dimensions L x W x H: 5.6 x 3.24 x 4.3 inches
