Air Operated Double Diaphragm Pump 1-1/2 Inch Outlet 44 GPM,Max 115 PSI

Air Operated Double Diaphragm Pump 1-1/2 Inch Outlet 44 GPM,Max 115 PSI

$290.33 USD
$290.33 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

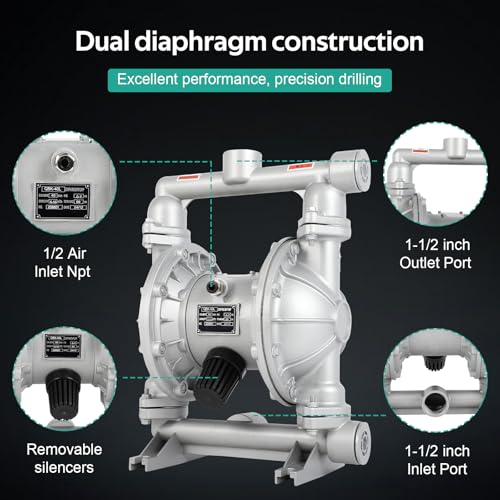

  • AIR OPERATED DOUBLE DIAPHRAGM PUMP: 44 GPM 1-1/2 inch inlet and outlet. The diaphragm pump housing is made of aluminum alloy and is secured with all-bolt construction to ensure a strong bond between components for a top-notch seal. It combines the reciprocating motion of rubber, thermoplastic, or Teflon diaphragms, with a suitable valve on each side of the diaphragm to pump the fluid
  • SPECIFICATIONS: 44 GPM air operated double diaphragm pump with 1-1/2 inch inlet and outlet. This powerful air-operated double diaphragm pump has an operating pressure of 29 to 115 PSI. maximum temperature: 150 F/66 C; maximum pressure: 120 psi; maximum flow: 44 GPM; maximum head: 226.38 ft/69 m. Capable of pumping at 44 gallons per minute in temperatures up to 80 degrees Fahrenheit

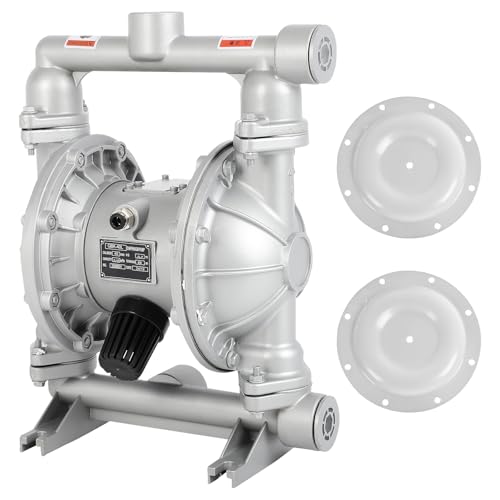

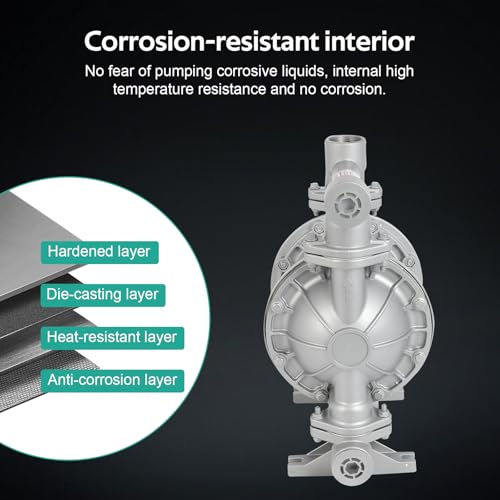

  • HIGH QUALITY PTFE DIAPHRAGM: with an extra set of diaphragms, our air operated double diaphragm pumps are equipped with Teflon diaphragms, which are resistant to corrosion, abrasion, high and low temperature, and excel in handling fluid transfer in harsh environments, such as strong acids and alkalis, thus prolonging the service life of the equipment and reducing the maintenance cost

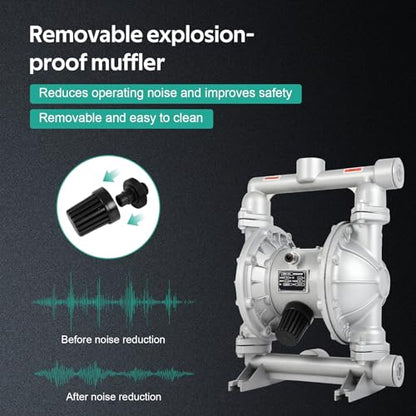

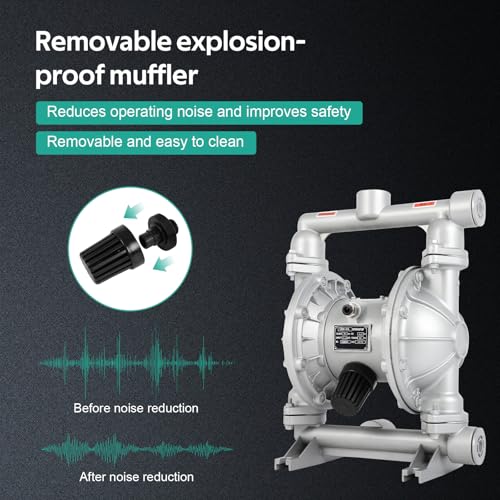

  • DETACHABLE SILENCER: our air operated double diaphragm pumps are equipped with advanced silencers, which can effectively reduce the noise generated when the air pump is working and the impact of the noise on the equipment itself, prolonging its service life. The removable design is easy to maintain and clean, which can reduce your maintenance cost

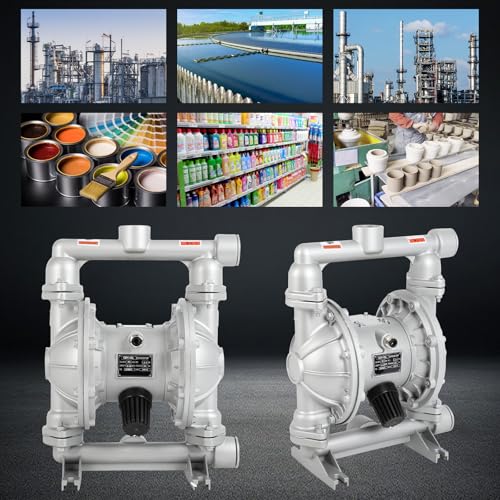

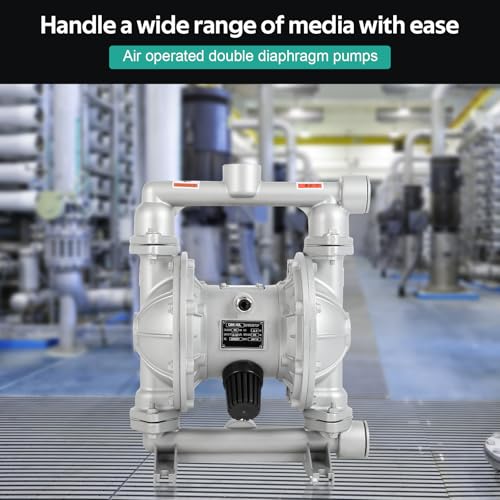

  • SUITABLE FOR A VARIETY OF FLUIDS: our pneumatic double diaphragm pumps for a variety of corrosive liquids, with particles, high viscosity, easy to play, explosive, highly toxic liquids, ceramics, glaze paste, jam, glue, oil recovery from the bottom of the tanker, temporary pouring tanks and other liquids can be pumped to be pumped up and sucked out. Its wide range of applications covers petroleum, metallurgy, mining, paint, printing, water treatment, chemical experiments and automotive and other industries

Overview

  • Brand: Dollate
  • Color: Silver
  • Material: Teflon diaphragms, aluminum alloy
  • Style: Air Operated Double Diaphragm Pump 1-1/2 Inch
  • Product Dimensions: 10.04"L x 13.58"W x 16.92"H
  • Power Source: Pneumatic
  • Item Weight: 27.8 pounds
  • Maximum Flow Rate: 44 gpm
  • Maximum Lifting Height: 10 inches
  • Voltage: 12 volts

Low stock: 10 left

View full details
