AC110V 63A 2P ATS Automatic/Manual Transfer Switch - size: ATS-110V-63A-2P

AC110V 63A 2P ATS Automatic/Manual Transfer Switch - size: ATS-110V-63A-2P

$63.06 USD
$63.06 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • Functions And Features: The mini automatic transfer switch is a PC-class, low-frequency transfer switch designed for automatic or manual switching between two power sources. automatic transfer switch can detect the functioning of either the primary or backup power source. transfer switch switches power sources (either mains or inverter) within 0.05 seconds, ensuring uninterruptible power supply. If the primary power source experiences an abnormality, the backup source immediately takes over, ensuring continuity, reliability, and safety. When the primary power source returns to normal, 63A automatic transfer switch automatically switches back to the primary source
  • Automatic Mode Switching: AC110v automatic transfer switch to use the AUTOMATIC mode, make sure the left switch must be in Auto and the right handle must be in position I. When the normal power supply (I) is normal, IU (green light) is always on; when the normal power supply (I) is abnormal, IU (green light) goes out and switches to the automatic power supply (II) within 0.05 seconds, IIU (red light) is on. When the normal power supply (I) returns to normal, transfer switch will automatically switch from the backup power supply (II) back to the normal power supply
  • Manual Mode Switching: 63A automatic transfer switch to use the MANUAL mode, make sure the left switch is in Manual. If you choose power supply (I), manually operate the right handle to make the switch in (I), IU (green light) is on; if you choose power supply (II), manually operate the right handle to make the switch in (II), IIU (red light) is on

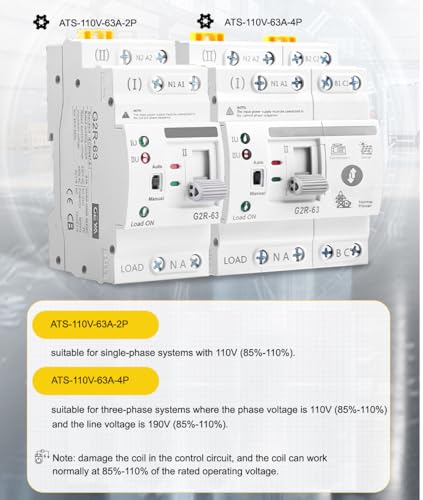

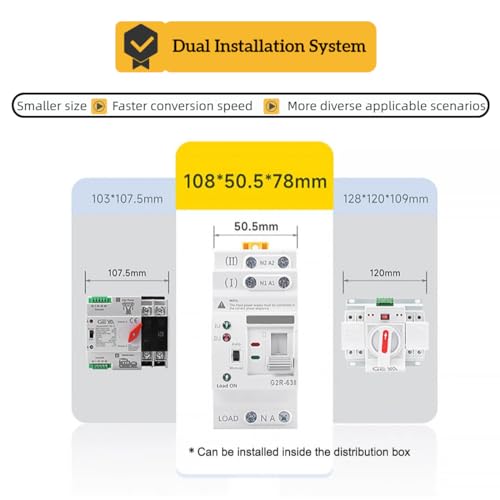

  • DIN Rail Mounting & Protection Function: 2P/4P AC110 dual power automatic transfer switch designed for home track installation, dedicated to PZ30 distribution box. This 110V automatic transfer switch is equipped with overpressure and underpressure protection, 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V ( 5V). automatic transfer switches is suitable for 50/60Hz dual power grid, working current is between 6A-63A
  • Wide Applications: This Mini automatic transfer switch (ATS) ensures a stable power supply and is suitable for use in situations where power outages are unacceptable. suitable for home power protection, small shops/convenience stores, medical equipment power supply, data centers and emergency systems, uninterrupted production line operation, photovoltaic microgrids, and indoor Rv, Lv, Cn Public/Backup Power and outdoor

Overview

  • Operation Mode: AUTO-MANUAL
  • Current Rating: 63 A
  • Operating Voltage: 120 volts_of_alternating_current
  • Contact Type: Normally Open
  • Connector Type: Plug In
  • Brand: JONAS C
  • Switch Type: Toggle
  • Terminal: Screw
  • Material: Acrylonitrile Butadiene Styrene, Copper

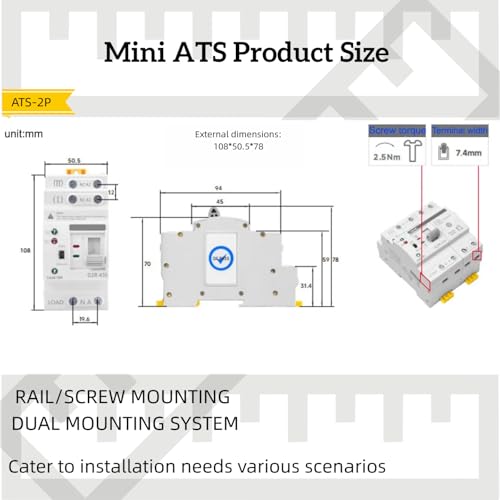

  • Item dimensions L x W x H: 4.27 x 3.39 x 2.28 inches
