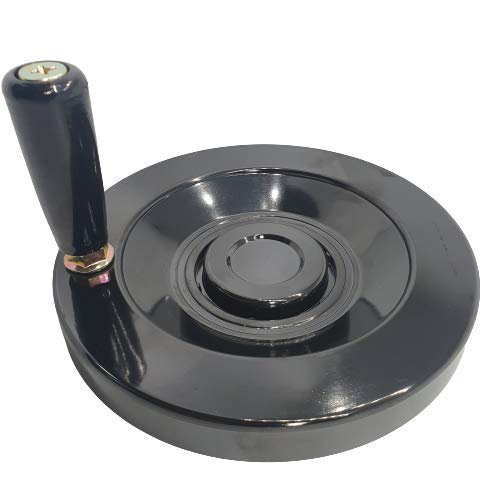

6" Ultimate Handwheel Fits 3/4" Shaft or Smaller - Table Saw, Lathe & More - size: 6" X 3/4"

About this item

• This 6 inch (150mm) hand wheel is compression-molded from dense phenolic bakelite around a solid AL6061 aluminum core hub, giving the crank handle a heat rating to 400F/200C and a true spin with no wobble under daily shop torque. Unlike thin riveted plastic round handles that crack or warp under heat, this handwheel holds its shape for years, making it a dependable table saw hand wheel, lathe hand wheel or drill press crank handle for machinists who need a solid replacement.

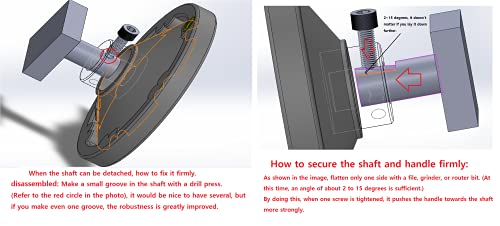

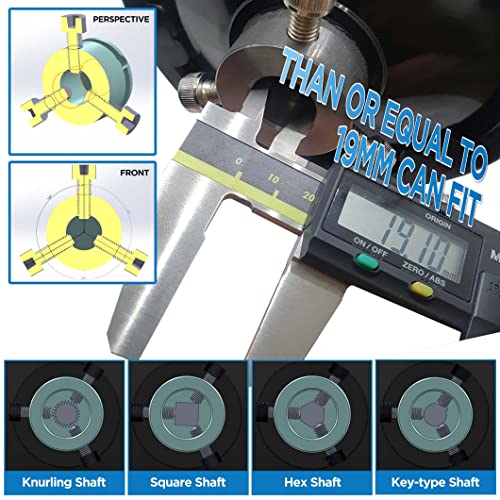

• Three hardened set screws triangulate around the hub of this crank wheel, biting into a round, D-shaped or square shaft so the hand wheel locks rock-solid with zero slipping, rattling or backlash under high-torque cranking. The AL6061 aluminum hub also bores out larger for a custom shaft, so this universal table saw handwheel adapts to your machine. Once tightened, this crank handle replacement holds its grip through repeated forward and reverse cranking without working loose.
• At the rim, a PA6 nylon revolving handle spins independently of the wheel body, threaded into a brass insert rather than riveted on, so this hand crank handle keeps turning smoothly instead of stripping out the way riveted plastic knobs do. The rotating knob handle lets your palm stay still while the handwheel does the work, cutting fatigue during long cranking on a lathe, mill or table saw. When it wears down, a fresh crank knob threads back into the same brass insert.

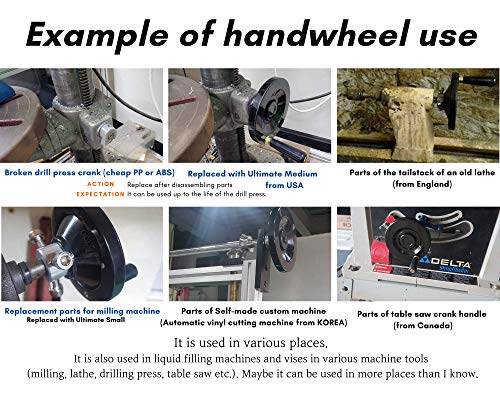

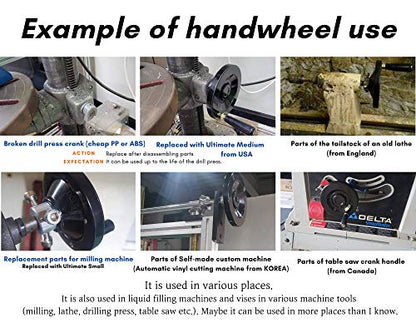

• This handwheel serves as a universal crank handle for table saw fence and blade-height adjustment, a lathe hand wheel for tailstock feed, a milling vise crank, and a drill press crank handle for quill feed, plus band saw tension adjustment and surface grinder control. It also reaches rotary tables and cross-slide work, anywhere a worn round handle needs to spin true again. Part of the Ultimate Handwheel lineup from DONGYANG, it restores confident cranking to shop machines.

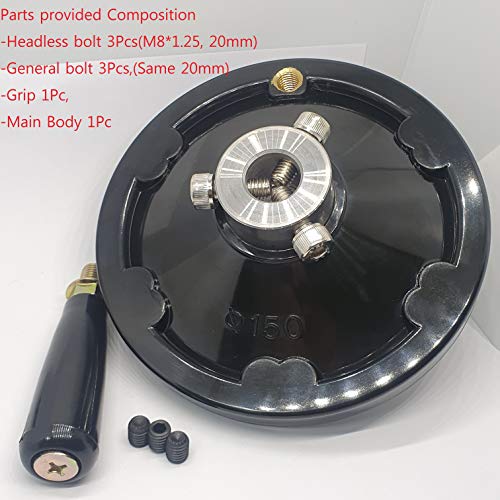

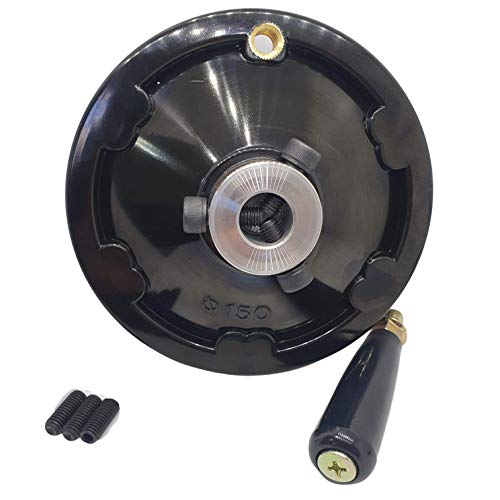

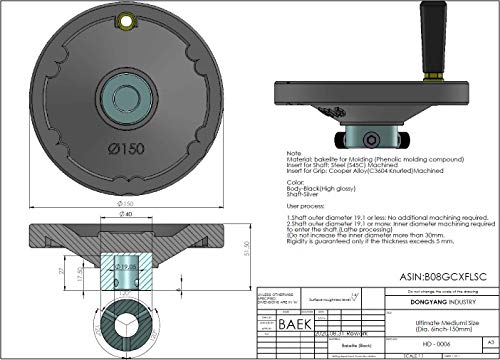

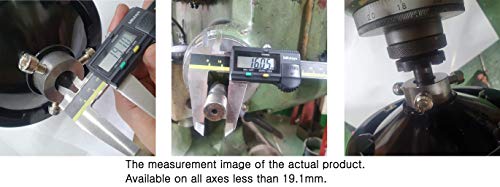

• This hand wheel measures 6 inches (150mm) across with a 3/4 inch (19.1mm) pre-machined bore, precision-cut for a snug fit rather than an oversized handwheel 3/4 bore that wobbles in place. Set screws and the revolving handle come pre-installed as one crank handle assembly; the shaft itself is not included. Measure your shaft diameter and compare it against your old handle before ordering this hand wheel 3/4 bore size, since the aluminum hub bores out larger but never smaller.

Overview

• Material: Alloy Steel, Aluminum, Brass, Plastic
• Brand: DONGYANG Ind. Co.,
• Color: Black
• Style: Classic
• Product Dimensions: 5.9"L x 5.9"W
