5" Ultimate Handwheel Fits 1/2" Shaft or Smaller - Table Saw, Lathe & More - size: 5" X 1/2"

About this item

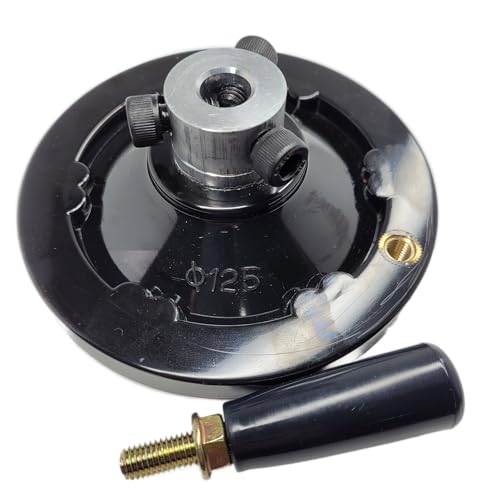

• This hand wheel crank handle is compression-molded from thermoset phenolic, the dense bakelite compound long trusted on industrial control wheels, and it carries a 400F (200C) heat rating so the rim stays hard instead of softening and warping the way an ABS handwheel does under shop heat. At the center sits a solid AL6061 aluminum core hub, and that core is what lets this rotating wheel spin true with no wobble even under heavy resistance on a table saw, lathe or milling machine.

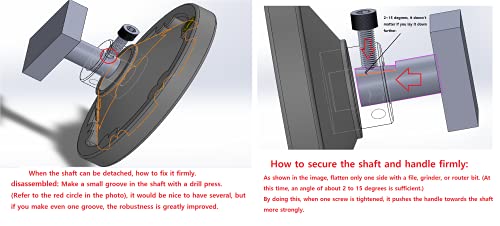

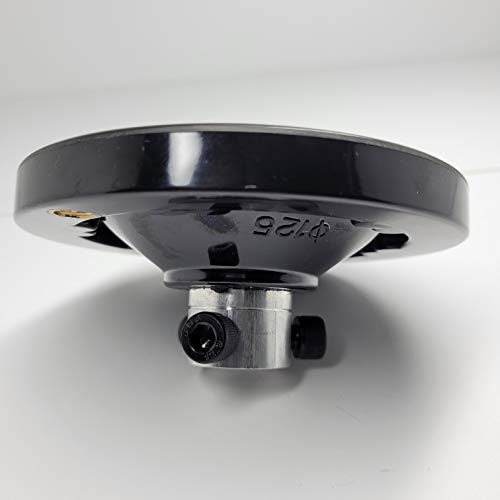

• Instead of one set screw that backs out under vibration, this crank handle locks on with a 3-point set screw system: three screws triangulate around the aluminum hub and bite into a round, D-shaped or square shaft, so the wheel grips from three directions at once. That triangulated hold keeps this hand wheel rock-solid with zero slipping, rattling or backlash under hard cranking, and the pre-machined 1/2in (12.7mm) bore seats onto your shaft cleanly before the screws are snugged down.

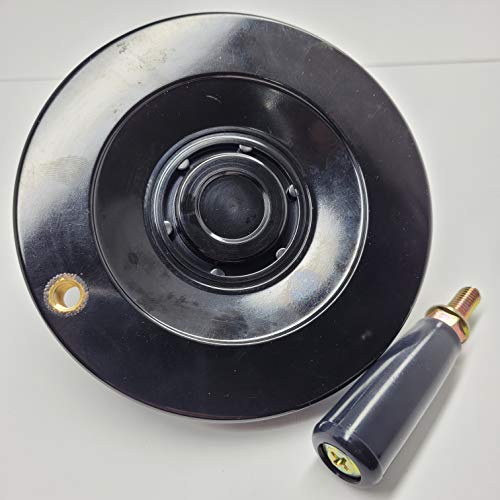

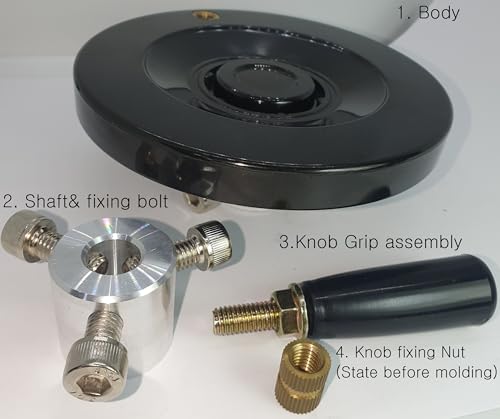

• The part you actually turn is a separate revolving handle: a PA6 nylon knob threaded onto a brass insert in the wheel rim, so this spinning handle turns on its own axis, not your whole wrist with the wheel body. Threaded into brass rather than riveted into plastic, it won't strip out from years of cranking and stays field-replaceable on its own. That low-friction swivel handle turns a stiff crank into a comfortable one, whether dialing in a fence or feeding a tailstock.

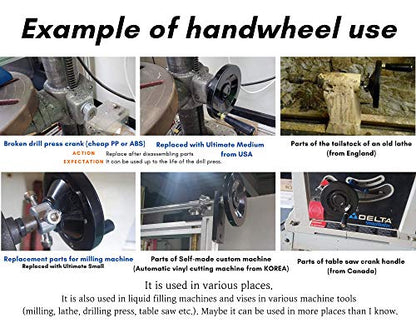

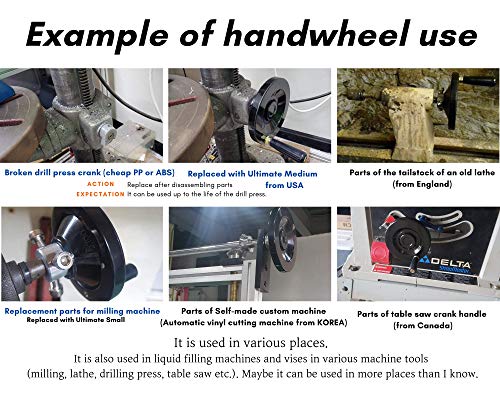

• This universal crank handle wheel is a machine replacement, not a single-tool accessory: it works as a table saw fence and blade-height handle, a lathe tailstock hand wheel on wood or metal lathes, a milling machine vise crank, a drill press quill feed handle and a band saw tension wheel, plus bending, slotting and rotary-table work. Because fit depends on shaft diameter and bore, not brand, this handwheel restores worn cranks on vintage and modern shop equipment.

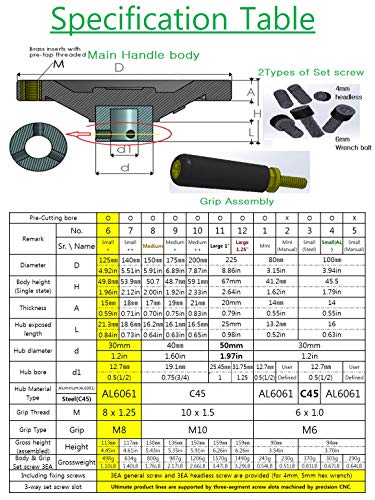

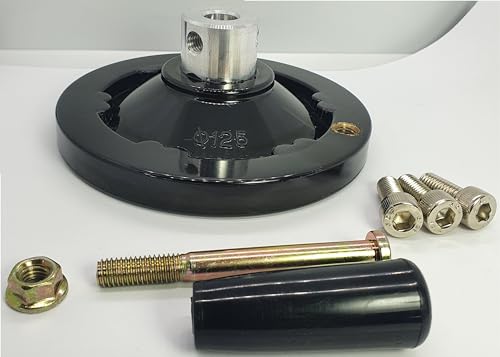

• This hand wheel measures 5in (125mm) across with a pre-machined 1/2in (12.7mm) bore, though the aluminum hub can be bored out further for an oversized shaft. Set screws and the revolving handle come already fitted to the wheel; the shaft itself is not included. Measure your machine's shaft diameter and bore, and compare it against your current handwheel or crank handle before ordering, so the swap is a five-minute job instead of a second parts order.

Overview

• Material: Alloy Steel, Aluminum, Brass, Plastic
• Brand: DONGYANG Ind. Co.,
• Color: Black
• Style: Classic
• Product Dimensions: 4.92"L x 4.92"W
