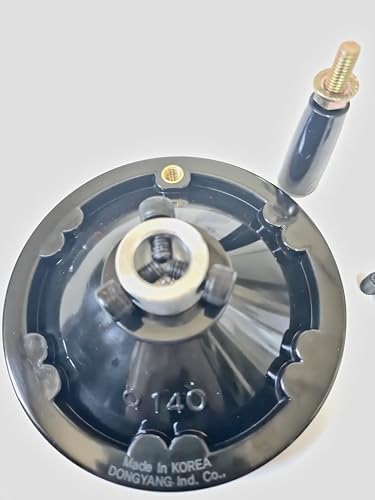

5.5" Ultimate Handwheel Fits 3/4" Shaft or Smaller - Table Saw & More - size: 5.5" X 3/4"

About this item

• This 5.5-inch (140mm) hand wheel is compression-molded from dense phenolic bakelite around a solid AL6061 aluminum core hub, the same rotating handle build used across our ultimate handwheel lineup, so this crank wheel spins true instead of flexing or wobbling under load. Heat-rated to 400F/200C, the phenolic body resists heat near a table saw fence, lathe tailstock or milling vise, holding its shape through years of shop use where a lesser handwheel handle would soften or crack.

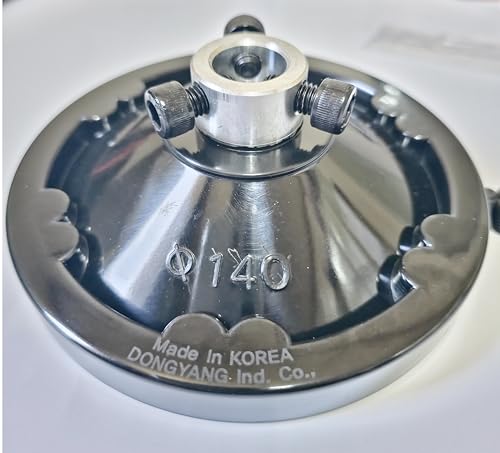

• Three set screws triangulate around the aluminum hub of this crank handle, biting into a round, D-shaped or square shaft so the wheel handle locks rock-solid with zero slipping or backlash under high-torque cranking on a drill press or milling machine. Unlike a single bolt handle or a hand wheel crank held by one screw alone, this three-point grip spreads clamping force evenly, so the crank handle replacement stays seated tight through repeated starts, stops and reversals over time.

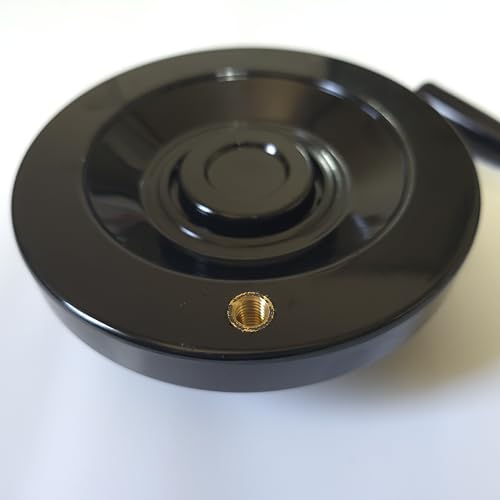

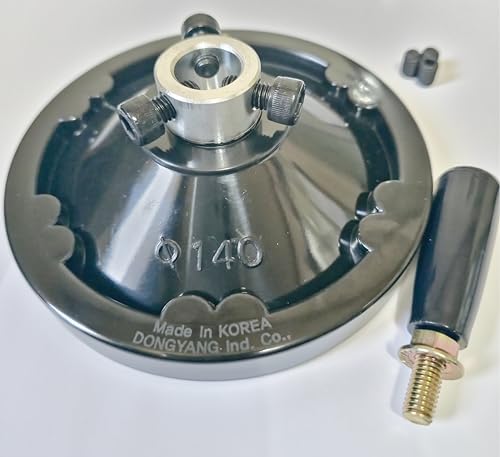

• The revolving hand knob on this hand wheel handle is molded from PA6 nylon and threads into a brass insert set into the wheel rim, so the swivel handle turns smoothly and independently of the wheel body every time you crank it. This rotating knob handle design means your palm rides a spinning grip rather than a fixed knob, and because the nylon threads into brass instead of a riveted post, this revolving crank handle stays field-replaceable for years instead of stripping out.
• As a universal table saw handwheel, this crank wheel swaps onto a table saw fence handle, a lathe hand wheel position at the tailstock, a milling machine vise, a drill press quill feed and a band saw tension wheel, restoring smooth adjustment to worn cranks on vintage and modern shop machines. Because fit depends on shaft diameter and bore rather than brand, this table saw handle replacement also serves as a drill press crank handle or grinder handle on a matching shaft.

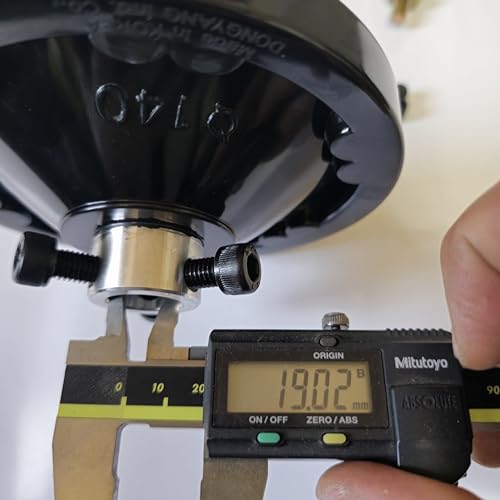

• Check your shaft before ordering: this handwheel 3/4 bore measures 5.5 inches (140mm) across the wheel and 3/4 inch (19.1mm) through the pre-machined bore, sized for that exact shaft range rather than a general table saw handle. Measure your machine's shaft diameter against your old hand wheel 3/4 bore or handwheel handle crank first, since the aluminum hub can be re-drilled larger for a custom shaft but not reduced, and DONGYANG machines this part in Korea for direct spindle fit.

Overview

• Material: Alloy Steel, Aluminum, Brass, Plastic
• Brand: DONGYANG Ind. Co.,
• Color: Black
• Style: Classic
• Product Dimensions: 5.5"L x 5.5"W
