3.15" Ultimate Handwheel Fits 1/2" Shaft or Smaller - Table Saw & More - size: 3.15" X 1/2"

About this item

• This 3.15 inch (80mm) crank handle hand wheel is compression-molded from thermosetting phenolic, often called bakelite, giving it a hard, glass-like body that resists heat up to 400F (200C) without melting or warping the way a molded plastic wheel does over years of use. At the center sits a solid AL6061 aluminum core hub, precision-machined so the whole handwheel spins true and stays steady, without wobble, even under heavy torque on table saw and lathe hand wheel jobs.

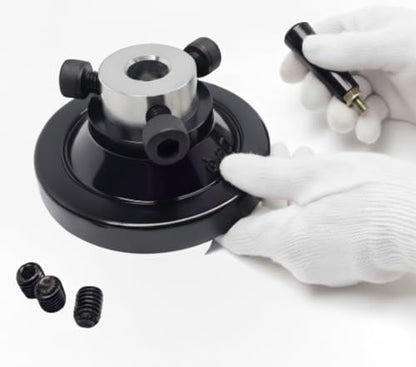

• Three set screws triangulate around the aluminum hub of this crank wheel, biting into a 1/2 inch (12.7mm) round, D-shaped or square shaft so the revolving hand knob locks down rock-solid instead of slipping, rattling or backlashing once you crank hard. This 3-point set screw pattern spreads clamping force evenly across the shaft, so the hand wheel handle holds its set position through the vibration and repeated torque of daily table saw crank handle and drill press crank use.
• The revolving handle itself is molded from tough PA6 nylon and threads directly into a brass insert set into the wheel rim, so this crank handle turns smoothly on its own axis instead of dragging the whole wheel body with every motion. Because the handle screws into brass rather than bare plastic, the threads on this hand crank handle resist stripping the way a riveted knob does, and the revolving hand knob stays replaceable for years of lathe hand wheel and milling vise cranking.
• This universal crank handle wheel restores worn cranks on shop machinery: swap it onto a table saw fence or blade-height wheel, a lathe tailstock handwheel, a milling machine vise crank, a drill press quill feed handle or a band saw tension wheel, and it also suits bending, slotting, rotary table and cross-slide work. Wherever a machine relies on a hand wheel crank to dial in a precise adjustment, this table saw crank handle style hand wheel brings back smooth, confident control.

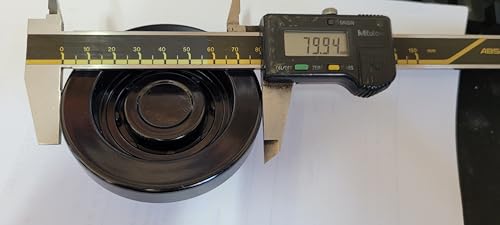

• Confirm the numbers before ordering: this handwheel measures 3.15 inches (80mm) across, and its pre-machined bore is 1/2 inch (12.7mm) for a snug fit on round, D-shaped or square shafts; the aluminum hub can be re-drilled larger if your shaft runs bigger. Measure your machine's shaft diameter and compare it against your old hand wheel handle before ordering, since a mismatched bore is the main reason a crank handle wheel doesn't seat correctly. Made in Korea by DONGYANG.

Overview

• Material: Alloy Steel, Aluminum, Brass, Plastic
• Brand: DONGYANG Ind. Co.,
• Color: Black
• Style: Classic
• Product Dimensions: 3.15"L x 3.15"W
