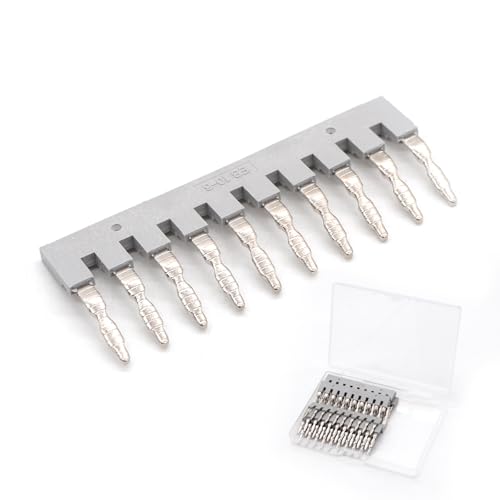

10Pcs EB10-6 Terminal Bridge Connector, DIN Rail Side Plug-in Block - color: Grey, size: 10 Pcs

10Pcs EB10-6 Terminal Bridge Connector, DIN Rail Side Plug-in Block - color: Grey, size: 10 Pcs

$24.88 USD
$24.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

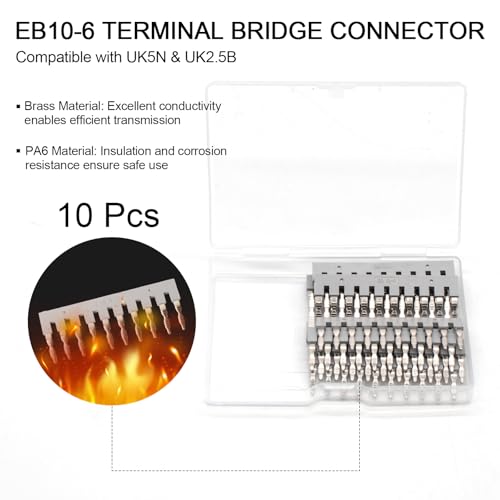

  • High-Quality Materials: Crafted from high-quality brass and PA6 material, known for excellent electrical conductivity, insulation, corrosion resistance, and thermal conductivity; It's designed for long-term use in complex environments without damage; Brass ensures efficient current transmission, while PA6 provides insulation, corrosion resistance, and mechanical strength for safe use; Brass's thermal conductivity aids effective heat dissipation, ensuring stable equipment operation

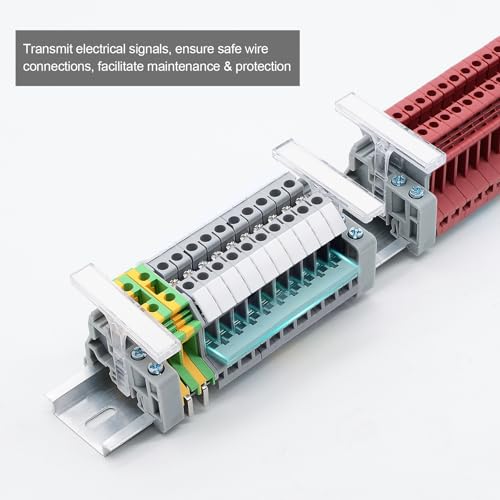

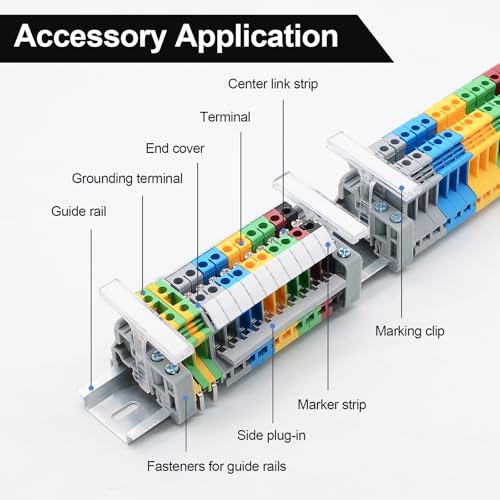

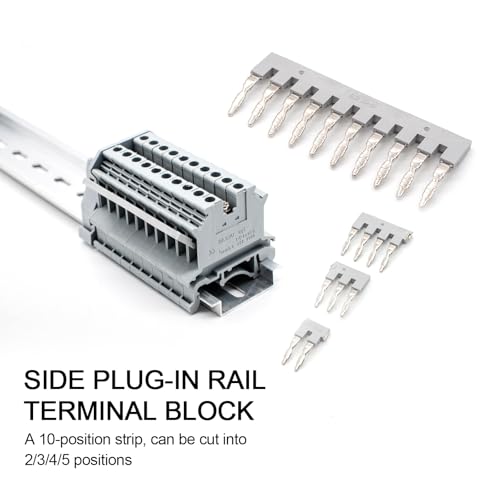

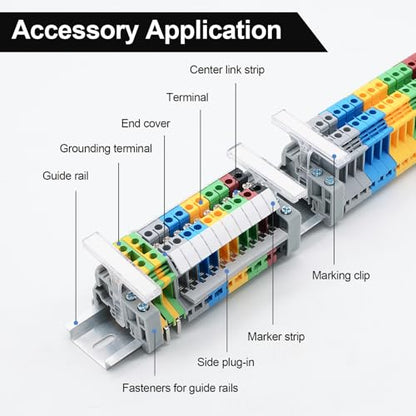

  • Function: Terminal bridge connectors are primarily used to bridge connections between adjacent wiring ports in terminal blocks, enabling the transmission of electrical signals or currents; Their functions include connecting and securing wires or conductors, providing safe and reliable electrical connections, facilitating maintenance and replacement of equipment components, protecting wires from external influences; They are suitable for UK5N & UK2.5B external bridging jumpers
  • High Quality Conductive Sheet: The conductive plates are made of brass, ensuring excellent contact performance and minimal contact resistance; At the same time, their standard dimensions provide peace of mind for use
  • Wide Application: This product is widely used in electrical control systems, industrial automation, power distribution, traffic signals, building and household electrical systems, and data communication; These terminal blocks ensure stable and reliable electrical transmission by securely connecting and bridging circuits or wires, thanks to their flexible design and dependable performance, making them suitable for various industrial and commercial environments
  • Product Parameters: Color: Silver Material: Brass, PA6 Current Rating: 32A Model Name: EB10-6 Connector Type: Screw Number of Poles: 10 Number of Positions: 10 Number of Contacts: 10 Mounting Type: DIN Rail Mount

Overview

  • Current Rating: 32 A
  • Connector Type: Screw
  • Number Of Contacts: 10
  • Mounting Type: din_rail, plug-in
  • Material: Brass
  • Color: Grey
  • Brand: GUETNEU
  • Number Of Poles: 10
  • Product Dimensions: 0.39"W x 0.39"H
  • Specification Met: CE
